OV2710 Sensor Fixed Focus Lens 1080P Camera Module USB Driver Free Plug And Play

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-GM882M-V1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

OV2710 Sensor Fixed Focus Lens 1080P Camera Module USB Driver Free Plug And Play

OV2710 sensor fixed focus lens 1080P camera module USB driver-free plug and play

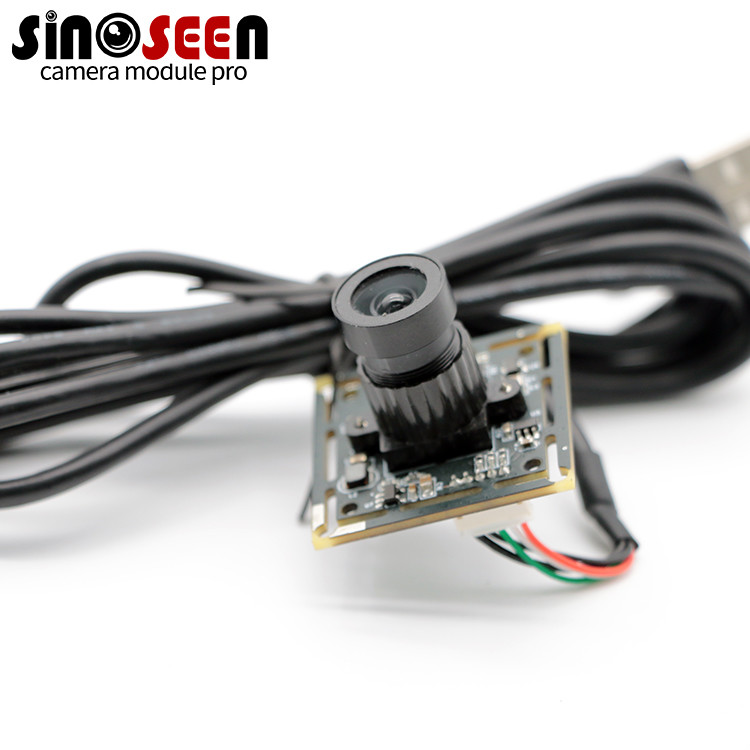

OV2710 USB Camera Module

This module OV2710 is a CMOS image sensor developed by OmniVision. With its 1080P resolution (1920x1080 pixels), it captures high-quality images and videos, suitable for applications that require clear and detailed visuals. Fixed focus lenses do not require manual adjustment of focus. It ensures that the camera module is always correctly focused, simplifying setup and ensuring worry-free operation. 1080P resolution delivers high-definition images, capturing clear and detailed visuals. This resolution is typically used for applications such as video conferencing, live broadcasting, and surveillance that require clear and sharp images.

Specification

Model No	SNS-GM882M-V1
Sensor	1/2.7’’ Omnivision OV2710 CMOS
Pixel	2 Mega Pixel
Most effective pixels	1920(H) x 1080(V)
Pixel Size	3.0µm x 3.0µm
Image Area	5856µm x 3276µm
Compression format	YUV2 / MJPG
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	39dB
Dynamic range	69dB
Sensitivity	3700 mV/lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	IR Cut filter: 850nm
	FOV: 70°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	38MM x 38MM
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 55°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
