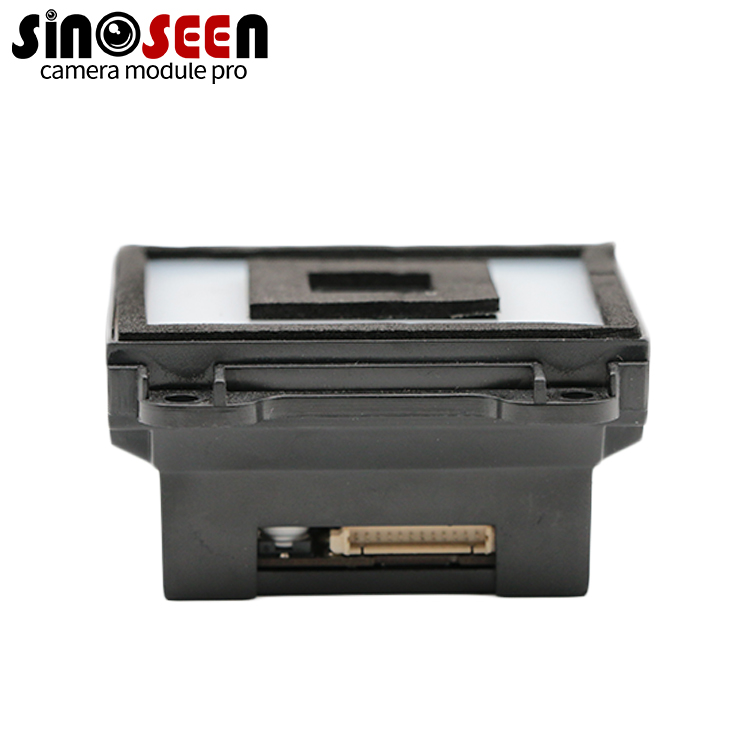

1D 2D Million Barcode Scanning Module Embedded Opaque Long Distance Scanning

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	WH-1037
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

1D 2D Million Barcode Scanning Module Embedded Opaque Long Distance Scanning

Feature and advantage
1. Roller shutter
2. 32-bit high performance CPU,1GHz frequency
3. Decoding min barcode density:4mil
4. Support 1D/2D barcode on paper and screen
5. Extremely high sensitivity, quick scanning
6. Interface RS232 and USB(HID,COM),TTL
7. Decoding at low and high brightness environment
8. Manual, Auto-sensing, Continuous, Host Mode
9. Large window, small size, fast convenient installation

Specification

Reading performance	Image Sensor	CMOS
	Exposure	Roller shutter
	Resolution	300 thousand 640*480pixels 60fps
	Decoding capacity	Support paper and screen barcodes
		2D: QR, MICROQR, PDF417, MICROPDF417, DATAMATRIX, MAXICODE, AZTEC, HANXIN etc.
		1D: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8,CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, INDUSTRIAL25, MATRIX25, S25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, CHINA POST, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_LIM, GS1_DATABAR_EXP etc. all normal 1D
	Precision	4mil
	View Angle	76.7°(H) x53.4°(V)
	Motion Tolerance	0.5meter per second
	Typical DOF	15-90mm(5mil code39) 15-150mm(10mil code39) 15-110mm(5mil UPCA) 15-120mm(10mil UPCA) 25-150mm(15mil QR) 15-110mm(8mil QR) 12-90mm(5mil PDF417) 11-110mm(8mil Data Matrix) Performance may be impacted by bar code quality and environmental conditions
Mechanical and electrical	WorkingVoltage	DC 5V
Mechanical and electrical	Current	150mA(Max) 90mA(working) 1mA(standby)
Environment Request	Working Tem	-30~65℃
	Storage Tem	-40~70℃
	Humidity	5%-95%(Non-condensing)
	Light Immunity	0~100,000Lux
	Drop Test	1.8M(6ft)
