Global Shutter 1mp Camera Module AR0144 Sensor USB Camera Module

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-GB331-V1.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

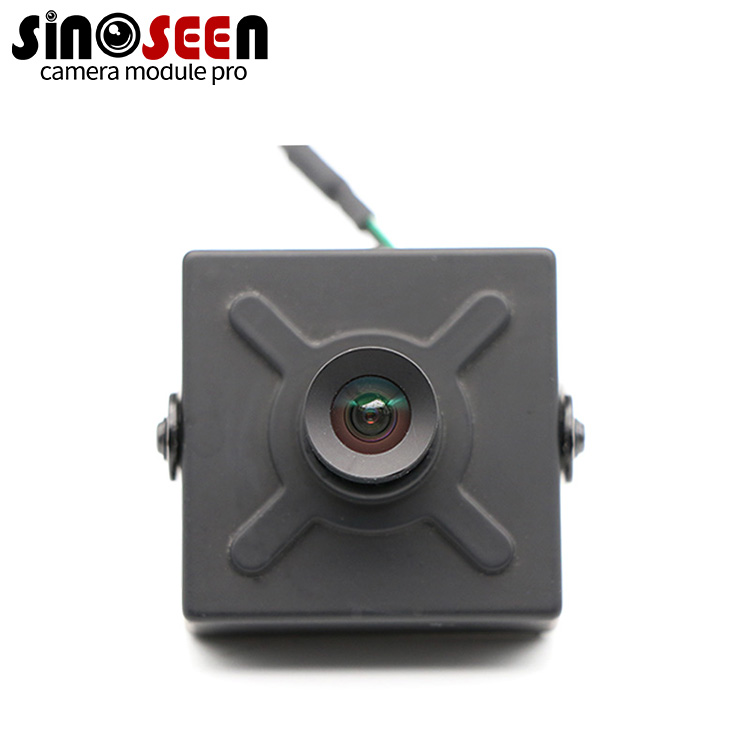

Global Shutter 1mp Camera Module AR0144 Sensor USB Camera Module

Fixed Focus AR0144 Global Shutter Camera Module 1MP Color ImageFixed Focus 1MP Color Image Global Shutter AR0144 USB Camera Module
AR0144 usb camera module
This is a 1MP USB camera module with global shutter technology for
distortion-free imaging of fast-moving objects. Often used in
industrial and automotive applications because of its ability to
capture high-quality images at fast shutter speeds. It is designed
for easy integration with various applications. The USB camera
module uses AR0144 sensor and USB interface, which can be easily
connected to various devices such as computers and embedded
systems.
This USB camera module is commonly used in applications such as
robotics, machine vision, and surveillance. Its compact size and
low power consumption make it suitable for portable and
battery-operated equipment.

Specification

Model No	SNS-GB331-V1.0
Sensor	1/4’’ ON Semiconductor AR0144
Pixel	1 Mega Pixel
Most effective pixels	1280H x 800V
Pixel Size	3.0µm x 3.0µm
Chroma	COLOR Image
Compression format	MJPG/YUY2
Resolution & Frame rate	1280 x800@ 60fps 1280x720 @60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps
Shutter Type	Global shutter
Focus type	Fixed focus
S/N ratio	38dB
Dynamic range	63.9dB
Protocol	Plug-&-Play (UVC compliant)
Interface type	USB2.0 high speed
Lens	Lens Size: 1/4 inch
	FOV: 90°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mW
Main chip	DSP/SENSOR/FLASH
Dimension	38x38MM customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Current avaliable global shutter USB camera module

Omnivision OV7251 0.3MP Monochrome(black and white)

Omnivision OV9281 1MP Monochrome(black and white)

ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color

Omnivision OG02B1B 2MP Monochrome(black and white)

Omnivision OG02B10 2MP RGB color
