Dual Lens 5MP Usb Camera Module Stereo 3D Fixed Focus With Omnivision OV5640 Sensor

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-5MP-DualOV5640
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Dual Lens 5MP Usb Camera Module Stereo 3D Fixed Focus With Omnivision OV5640 Sensor

Dual Lens Omnivision OV5640 Camera Module 5MP Stereo 3D Fixed Focus

Dual Lens 5MP Stereo 3D Fixed Focus Usb Camera Module With Omnivision OV5640 Sensor

OV5640 Usb Camera Module

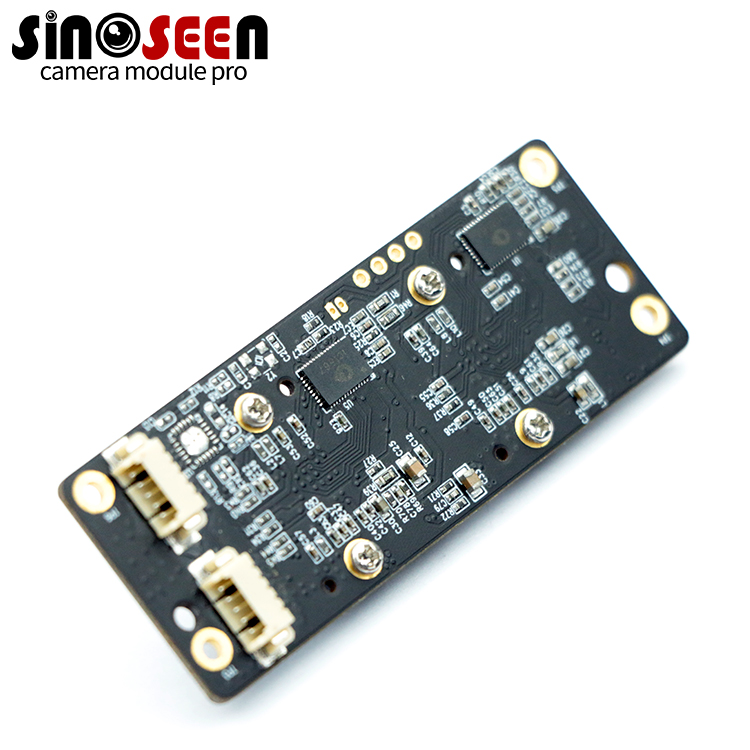

This is a dual-lens USB camera module. Equipped with two OV5640 image sensors with fixed-focus lenses, it enables stereoscopic 3D imaging. Commonly used in cameras and mobile devices.
This camera module is designed to be connected to a computer or other device with a USB interface. It can be used in various applications such as computer vision, robotics, virtual reality and 3D scanning. The dual-lens design allows capturing images with depth information, which can be used for 3D reconstruction and depth sensing.
It should be noted that the performance of the camera module will depend on various factors such as lighting conditions, image processing algorithms and lens quality.

Specification:5MP Fixed Focus

Model No	SNS-5MP-DualOV5640
Sensor	1/4’’ Omnivision OV5640 CMOS
Pixel	5 Mega Pixel
Most effective pixels	2592(H) x 1944(V)
Pixel Size	1.4µm x 1.4µm
Image area	3673.6μm x 2738.4μm
Compression format	MJPG/YUY2
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	36dB
Dynamic range	68dB
Sensitivity	600mV / lux-sec
Interface type	USB2.0
Lens FOV	65°
Microphone	Built-in
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, <300mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control	Not Supported
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	65MM x 42MM
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
