Small Size AR0230 Sensor 2MP USB Camera Module Face Recognition

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-2MP-AR0230-V1.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

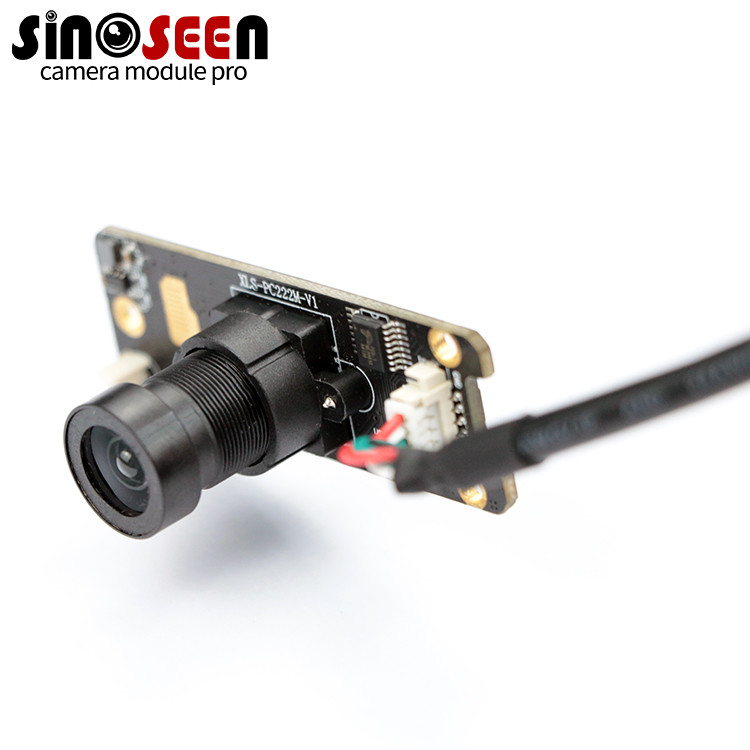

Small Size AR0230 Sensor 2MP USB Camera Module Face Recognition

Small Size 2MP USB Face Recognition Camera Module AR0230 Sensor

Small Size HDR High Dynamic Range 2MP USB Camera Module With AR0230 Sensor

Camera Module AR0230 Sensor

This is a camera module that captures images at 2 megapixel resolution. Its small and compact design makes it suitable for use in applications where space is limited.

One of the key features of this camera module is that it is specially designed for face recognition applications. Facial recognition is a technology that uses algorithms to identify and verify an individual's identity based on their facial features. This camera module can be used in systems that require facial recognition, such as access control systems, security systems, or other types of surveillance systems.

The camera module connects to the system via USB, a widely used interface compatible with many different types of devices. This makes it easy to interface the camera module to a computer, microcontroller, or other type of system.

Specification

Model No	SNS-2MP-AR0230-V1.0
Sensor	1/2.7’’ Aptina AR0230
Resolution	2 Mega Pixel
Most effective pixels	1920 X 1080
Pixel Size	3.0μm X 3.0μm
Resolution	See above
Compression format	YUY2/MJPG
Frame rate	See above
Shutter Type	Electronic rolling shutter
Lens FOV	80° and customizable
Input clock frequency	6-48MHz
Focus type	Fixed focus/Manually adjustable
S/N ratio	41dB
Dynamic range	UP to 96dB
Dark current	<10mA
Interface type	USB2.0
Microphone	Optional
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mA
Main chip	DSP/SENSOR/FLASH
Automatic Exposure Control (AEC)	Support
Automatic White Balance (AEB)	Support
Automatic Gain Control (AGC)	Support
Dimension	60x13MM
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB Wire	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC

Small Size AR0230 Sensor 2MP USB Camera Module Face Recognition

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
