OEM Customizable Medical Endoscope USB Camera Module Vision Solution

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-1MP-OV9734-S2
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

OEM Customizable Medical Endoscope USB Camera Module Vision Solution

Medical Endoscope OEM Camera Modules Vision Solution OV9734 Sensor

OEM Customizable Medical Endoscope USB Camera Module Vision Solution

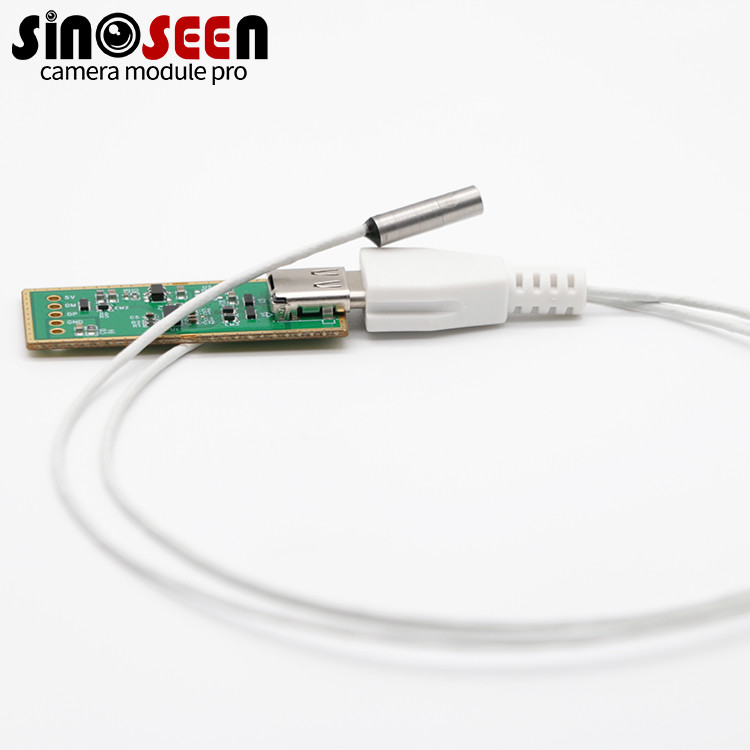

Endoscope OEM Camera Module

This is a camera module specially designed for medical endoscopy applications. It's a USB camera module, which means it can be connected directly to a computer or other device with a USB port.

This camera module can be customized to meet the specific needs of medical endoscopy applications. It features high-quality optics and image sensors that deliver high-resolution images and video. The camera module can be integrated with various endoscopes and can be customized according to the specific requirements of the endoscope.

A USB interface allows easy connection to computers and other devices, and the camera module can be controlled using the software provided with the module. This allows for easy capture and analysis of images and videos.

Specification

Module No	SNS-1MP-OV9734-S2
Pixel Size	1.4μm x 1.4μm
Effective Pixels	1MP 1280(H) x 720(V)
Video output	Raw Bayer10bit/8bit
Active Array Size Video Rate	30FPS
Image Sensor	1/9"
Sensor Type	Omnivision OV9734
Lens view	FOV60°(optional),F/N(optional)
TV Distortion	<1%
AEC	Support
AEB	Support
AGC	Support
Operating voltage	AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature	-20～70℃
Storage temperature	0～50℃
Dimensions	Customizable
