5MP Camera Module with OV5640 for Video Surveillance Video Conference

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-5MP-OV5640-TTP
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

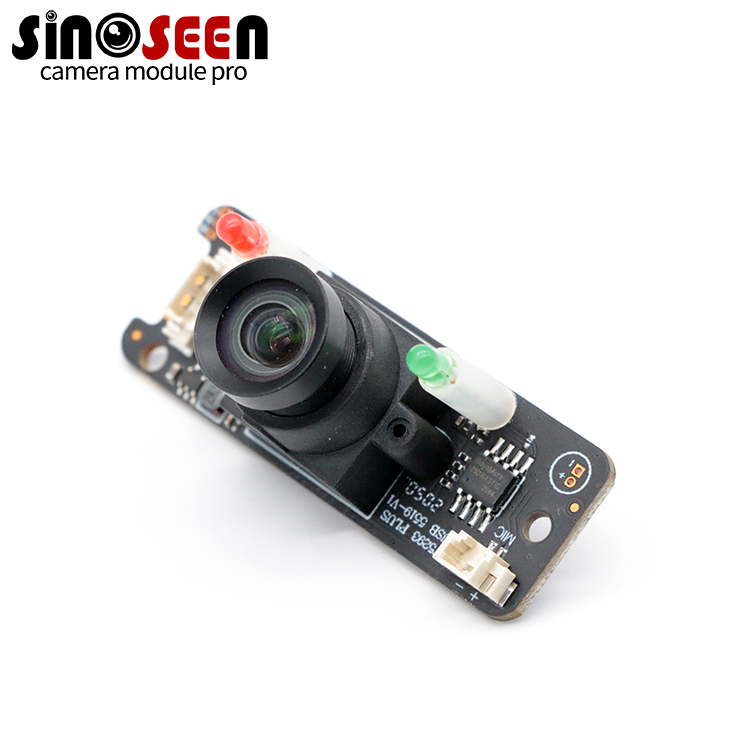

5MP Camera Module with OV5640 for Video Surveillance Video Conference

5MP Usb Camera Module 1/4 Inch High Sensitivity HD With OV5640 Sensor.

Hot Selling 1/4 Inch High Sensitivity HD 5MP Usb Camera Module With OV5640 Sensor.

HD 5MP OV5640 Camera Module

Features:

Features high sensitivity and low power consumption

The maximum resolution is: 2592 (H) x 1944 (V)

Used in high-definition photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields

If you need to customize your own module, we can customize all parameters such as size, lens angle, etc. according to your requirements

Specification

Model NoSNS-5MP-OV5640-TTP
Sensor1/4’’ Omnivision OV5640 CMOS
Pixel5 Mega Pixel
Most effective pixels2592 (H) x 1944 (V)
Pixel Size1.4µm x 1.4µm
Image area3673.6μm x 2738.4μm
Compression formatYUYV/MJPEG
Resolution & Frame rateSee above
Shutter TypeElectronic rolling shutter
Focus typeFixed focus
Object distance5CM-infinity
S/N ratio36dB
Dynamic range68dB
Sensitivity600mV / lux-sec
Interface typeUSB2.0 high speed
Adjustable parameterBrightness/Contrast/Color saturation/Hue
Definition/White balance/Exposure
Lens FOV80°
Power supplyUSB BUS POWER
Power consumptionDC 5V, 150mA
Main chipDSP/SENSOR/FLASH
Auto Exposure ControlSupport
Auto White BalanceSupport
Auto Gain ControlSupport
Dimension(customizable)
Storage temperature-20°C to 70°C
Operating temperature0°C to 60°C
USB cable lengthDefault 0.5M
Support OSWinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
