2MP OS02C10 Sensor HDR High Dynamic Range MIPI Camera Module

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS21758-V1.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

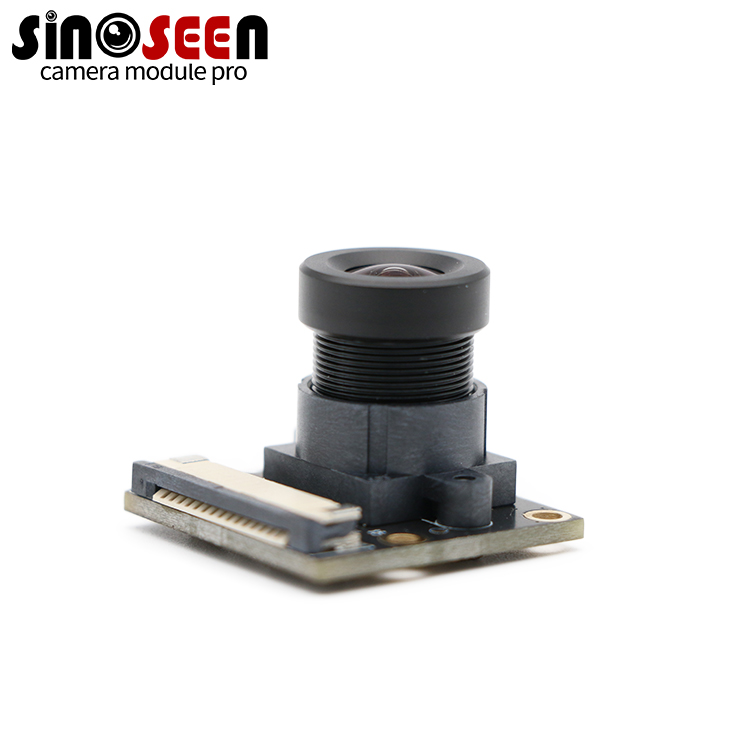

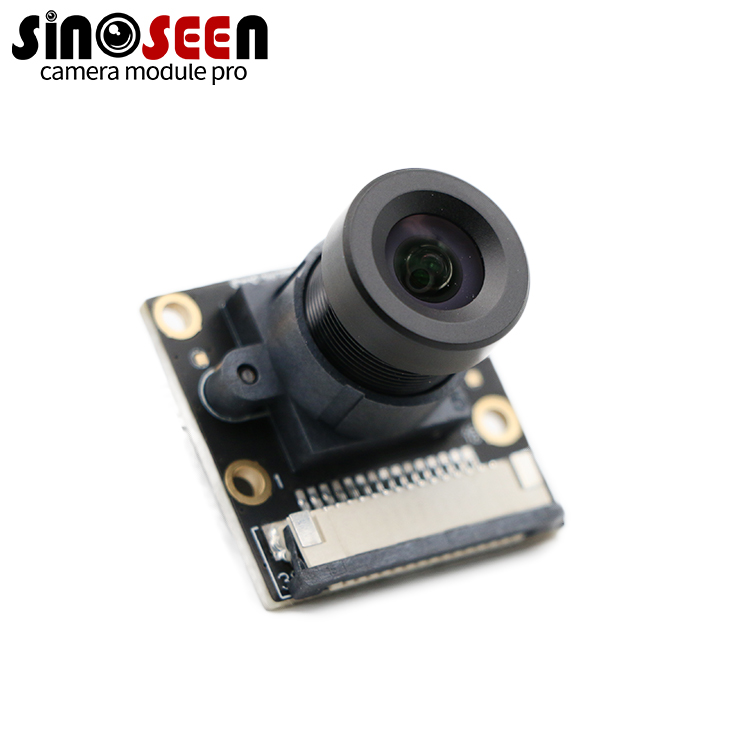

2MP OS02C10 Sensor HDR High Dynamic Range MIPI Camera Module

2MP MIPI Camera Module

This 2MP HDR (High Dynamic Range) MIPI Camera Module is a dedicated camera module that integrates an OS02C10 CMOS image sensor with a resolution of 2 megapixels (2MP). The camera module supports HDR imaging for a wider dynamic range between the darkest and brightest parts of the image. HDR technology helps capture details in shadows and highlight areas, resulting in a more balanced and visually appealing image. Camera modules are usually designed to be compact and lightweight, making them suitable for integration into various devices and applications.

Specification

Model No	SNS21758-V1.0
Sensor	1/2.8" Omnivision OS02C10
Pixel	2MP
Most effective pixels	1920x1080
Pixel Size	2.9 µm x 2.9 µm
Min illumination	530nm
Compression format	MJPG / YUY2
Resolution & Frame rate	40X3 fps @ 1080p in 10-bit 30X3 fps @ 1080p in 12-bit
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	32,000 e- /Lux-sec
Interface type	MIPI
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens FOV	160°
Audio frequency	Support
Power consumption	DC 5V, 100mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	-30°C to 85°C
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
