    GC5035 5MP Autofocus MIPI Camera Module For Mobile With Adjustable Parameters

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS51622-V1.1
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

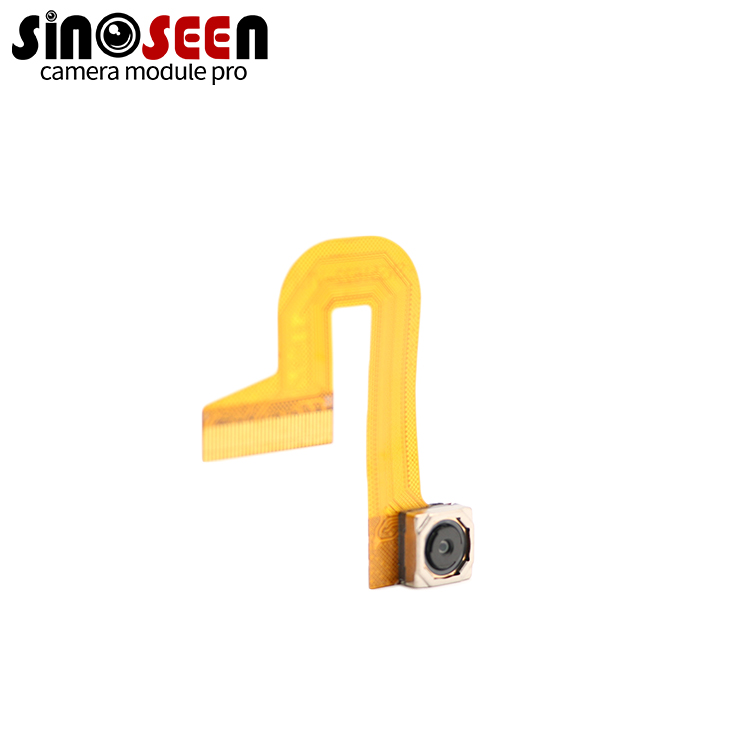

    GC5035 5MP Autofocus MIPI Camera Module For Mobile With Adjustable Parameters

    GC5035 5MP autofocus MIPI camera module for mobile applications with adjustable parameters


    GC5035 5MP mipi camera module

    This is a 5MP autofocus MIPI camera module designed for mobile applications. Unlike the previous 0.3MP fixed-focus camera module, this one offers higher resolution and autofocus. This solution provides more detailed and higher quality images than a 0.3MP camera module. The camera module offers adjustable parameters that allow users to customize various settings to optimize image quality. These parameters may include exposure, white balance, saturation, contrast, and other image processing settings. Adjusting these parameters can help improve overall image quality and achieve the desired visual effect. This camera module is designed for mobile applications, making it suitable for integration into smartphones and other portable devices. With its higher resolution and autofocus capabilities, it enables users to capture detailed photos and videos with mobile devices.

    Specification
    Model No

    SNS51622-V1.1

    Sensor1/5’’ inch
    Pixel5 Mega Pixel
    Most effective pixels2592(H) x 1944(V)
    Pixel Size1.2µm x 1.2µm
    Resolution & Frame rateSee above
    Shutter TypeElectronic rolling shutter
    Focus typeFixed focus
    S/N ratio36dB
    Dynamic range72 dB @ 8x gain
    Sensitivity690mV / lux-sec
    Adjustable parameterBrightness/Contrast/Color saturation/Hue/Definition/
    Gamma/White balance/Exposure
    LensTTL: 23.89MM
    Lens Size: 1/3 inch
    DFOV: 80°
    Thread Size: M12*P0.5
    Audio frequencyOptional
    Power supplyUSB BUS POWER
    Power consumptionDC 5V, 200mW
    Main chipDSP/SENSOR/FLASH
    Auto Exposure Control (AEC)Support
    Auto White Balance (AEB)Support
    Auto Gain Control (AGC)Support
    Storage temperature-20°C to 70°C
    Operating temperature0°C to 60°C
    USB cable lengthDefault
    Support OSWinXP/Vista/Win7/Win8/Win10
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC
