High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-2MP-SC2315-S1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

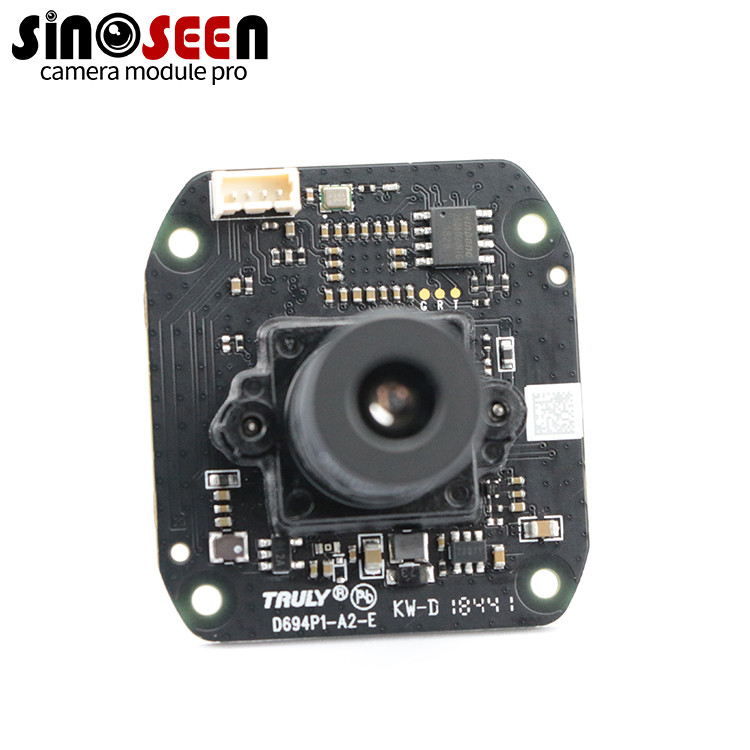

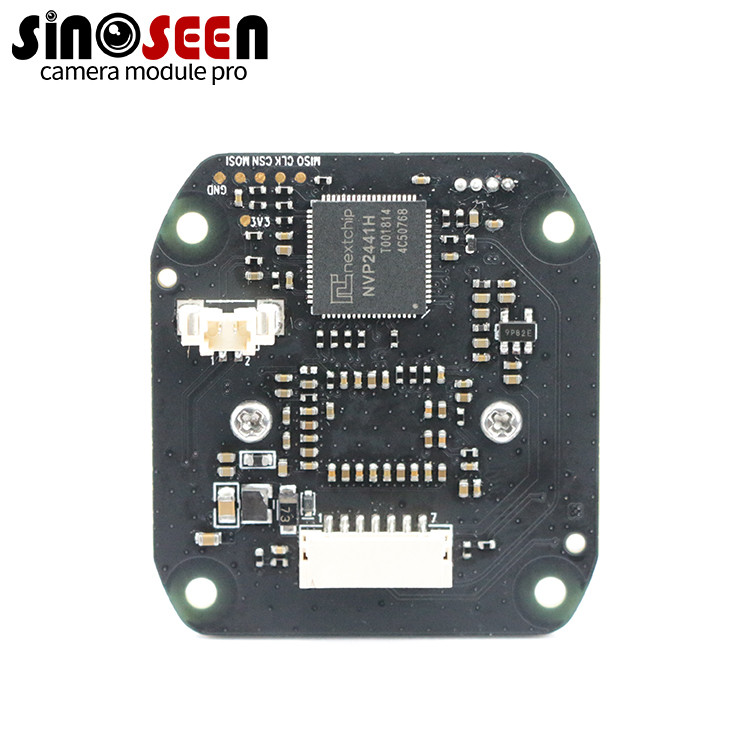

High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor

High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor

60FPS HFR High Frame Rate 2MP 1080p UVC Plug And Play Drive Free USB Camera Module

2MP 1080p Camera Module

This is a very good and cheap camera module. The biggest advantage of this camera module is that it supports a high frame rate of 60FPS at full resolution (1920x1080), while most similar products can only support it at 1920x1080 resolution.
The size of the camera module and the FOV of the lens, other parameters can be customized according to your requirements

Specification

Model No	SNS-2MP-SC2315-S1
Sensor	1/2.7’’ SmartSens SC2315 CMOS
Pixel	2 Mega Pixel
Most effective pixels	1920(H) x 1080(V)
Pixel Size	3.0µm x 3.0µm
CRA	12°
Chroma	Color
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	42dB
Dynamic range	82dB
Sensitivity	4800mV / lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens Size: 1/2.7 inch
	FOV: 85°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 190mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	38MM x 38MM (32MM x 32MM)
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
