GC2145 Sensor 2MP Camera Module 1600x1200 USB2.0 Interface Adjustable

GC2145 Sensor 2MP Camera Module 1600x1200 USB2.0 Interface Adjustable

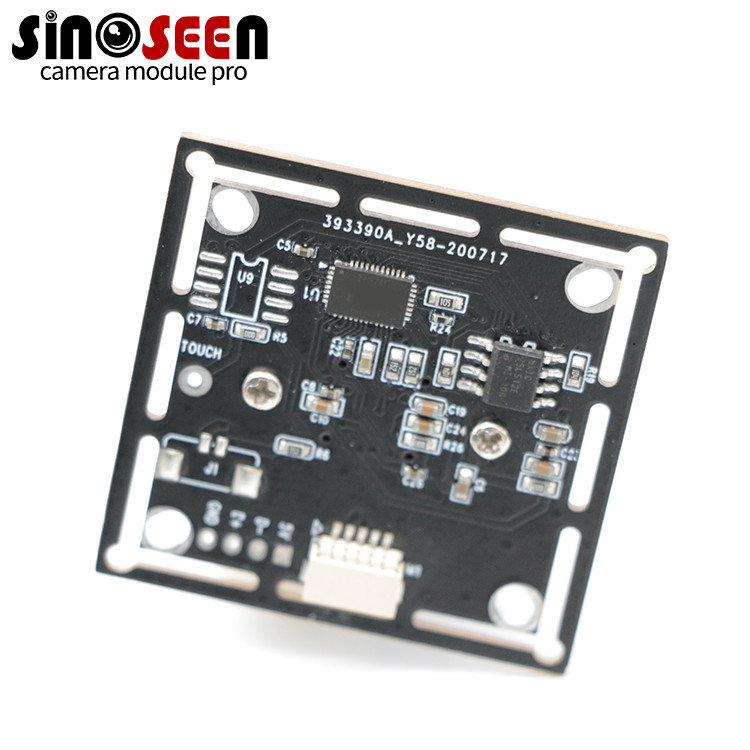

Low Cost 2MP 1600x1200 USB Camera Module With GalaxyCore GC2145 CMOS Sensor

2MP Camera Module

This is a very economical 2MP USB camera module. It uses the GC2145 produced by the Chinese chip manufacturer GalaxyCore. With the gradual development of China, China's scientific and technological strength is also increasingly updated. Although the technology of some high-end chips may not be comparable to some large international chip manufacturers, our performance is also excellent for low-end chips, and we can achieve very cheap prices.

It supports below frame rate:

1600x1200 @15fps

1280x720 @ 15fps

640x480 @ 30 fps

320x240 @30fps
If you consider a 2MP USB camera module with good performance and affordable price, believe me, this will be a good choice for you.

Specification

Model No	SNS-41-FU2M-V1
Sensor	1/5" GalaxyCore GC2145
Pixel	2 Mega Pixel
Most effective pixels	1600(H) x 1200(V)
Pixel Size	1.75µm x 1.75µm
Protocol & Connection	Plug-&-Play (UVC compliant)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Output Format	10b / 12b RAW
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Interface type	USB2.0
Lens FOV	90°
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Audio frequency	Optional
Microphone	2
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

GC2145 Sensor 2MP Camera Module 1600x1200 USB2.0 Interface Adjustable

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
