720P 1080P Stereo Camera Module 60x8mm With Himax HM2056 Sensor

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-PC825M-V1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

720P 1080P Stereo Camera Module 60x8mm With Himax HM2056 Sensor

720P 1080P Stereo Camera Module 60x8mm With Himax HM2056 Sensor

Compact Design 2MP USB Camera Module With Himax HM2056 For Limited Space Application

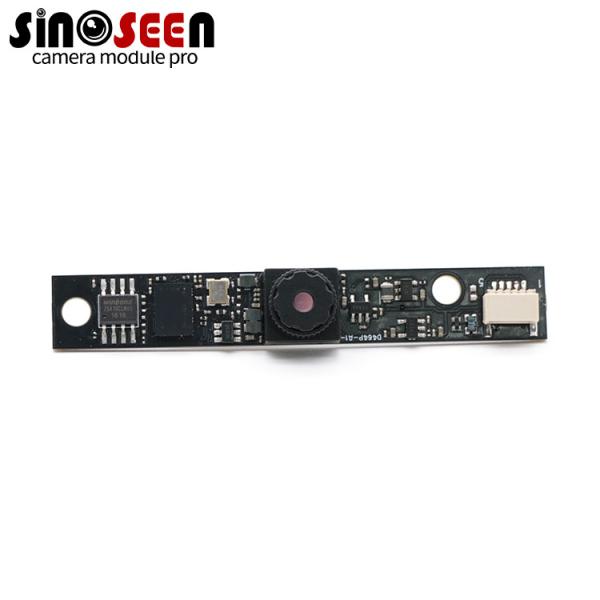

This is a 2MP USB camera module that we designed for a customer's small advertising player. It uses Himax HM2056 chip. The chip size of HM2056 is only 1/5 inch, which is very small among many 2MP chips. This allows it to be designed so compact yet capable of reaching 2MP resolution.
If your space is very limited, then this long and compact design will be a very good attempt. Of course, if you think this is still too big, we have other solutions that can make it smaller.

Specification:Camera Module

Module No.	SNS-ZK01-V1.0
Module Size	60mm ×8.0mm × 4.5mm
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed focus
Object distance	15CM-130CM
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power	USB bus power
Operating system request	Win2000,Win XP,Win7 or Linux,Android
Package	Anti-electrostatic tray
Certifications	FCC and CE
Sensor Type	HM2056 (1/5” )
Active Array Size	1620*1220
Sensitivity	1500mV/(Lux·sec)
Pixel Size	1.75µm x 1.75µm
Maximum Image Transfer Rate	720P:15fps
S/N Ratio	36dB
Dynamic Range	70dB
Package	BGA-36pin
Lens Construction	2P+IR
F/No	2.8±5%
EFL	2.85±5%
BFL(Optical)	2.45mm
FOV	60°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
AGC/AEC/Whiter balance	Auto
Output Formats	USB suspend out
Fixed Pattern Noise	< 0.03% of VPEAK-TO-PEAK
Package	QFN-46pin

720P 1080P Stereo Camera Module 60x8mm With Himax HM2056 Sensor

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Current available USB solution

0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)

1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)

2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)

5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)

8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)

13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)

USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268

H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
