USB 2.0 0.3MP OEM Camera Module 640*480 Pixels For QR Code Scanner

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-0.3MP-GC0308-SS1
Certification :	RoHs
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

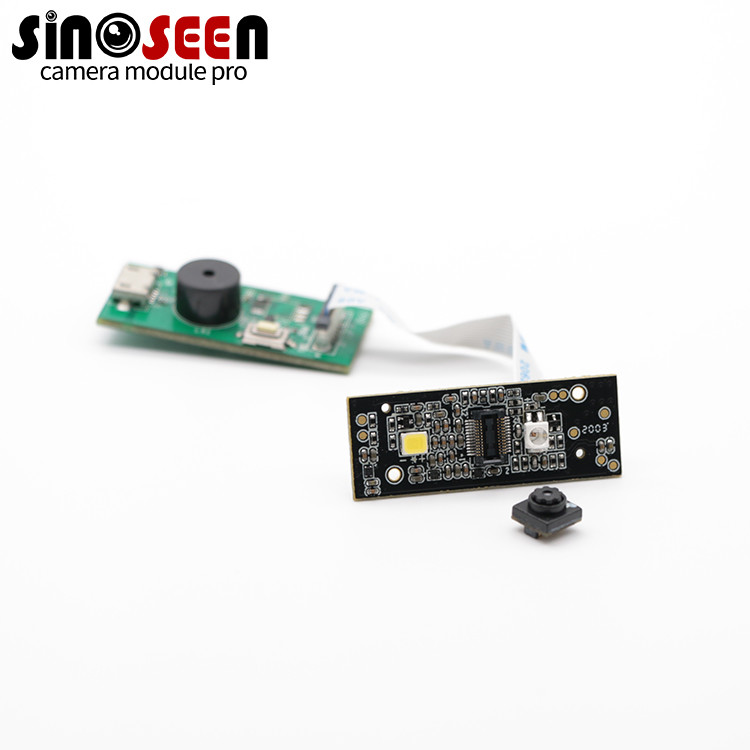

USB 2.0 0.3MP OEM Camera Module 640*480 Pixels For QR Code Scanner

USB 2.0 0.3MP OEM Camera Module 640*480 Pixels For QR Code Scanner

Quick Speed Bar Code QR Code Scanner USB Camera Module Solution With Flashlight

0.3MP OEM Camera Module

This is the overall solution of a USB camera module used as a QR code barcode scanner, which can quickly recognize QR codes.The USB camera modules, it is 0.3MP/VGA (860*640) resolution with GalaxyCore GC0308 sensor, quality is good and stable.
Also, this is one is the lowest cost USB camera modules. We have strong partnership with our sensor supplier & other components suppliers, and we have the know-how to make quality as high as possible, cost as low as possible.
This module can be used in many applications, like desktop PC cameras, electronic toys, robotics, computer vision, machine vision,industrial, power supply, digital still cameras and camcorders, video telephone and conferencing equipments, security systems, bar code reader, QR (quick response) code, ticket gate and many others

Specification

Model No	SNS-0.3MP-GC0308-SS1
Sensor	1/ 6.5’’ GalaxyCore GC0308
Pixel	0.3 Mega Pixel
Most effective pixels	640 (H) x 480 (V)
Pixel Size	3.4µm x 3.4µm
Compression format	YUY2 ONLY
Resolution & Frame rate	640x480@30fps; 352x288@30fps; 320x240@30fps; 176x144@30fps; 160x120@30fps;
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	49dB
Dynamic range	55dB
Sensitivity	3300mV/Lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma
Audio frequency	Optional
Lens FOV	Default 60° (Optional)
Lens Thread Size	M12*P0.5 (Optional)
Power supply	USB BUS POWER
Power consumption	DC 5V, 70mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	NOT Support
Auto White Balance (AEB)	NOT Support
Auto Gain Control (AGC)	NOT Support
Dimension	30mm x 25mm
Storage temperature	-30°C to 80°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
