OEM 1MP 1080P Full HD USB Camera Module with Metal Housing for Security Monitoring

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-1MP-H62-H1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

OEM 1MP 1080P Full HD USB Camera Module with Metal Housing for Security Monitoring

720P 1MP 1080P Full HD Camera Module UVC Compliant Drive With Metal Housing

OEM HD 720P 1MP 1080P 2MP CMOS USB Camera Modules UVC Compliant Drive Free Plug & Play With Housing

1080p Full HD Camera Module

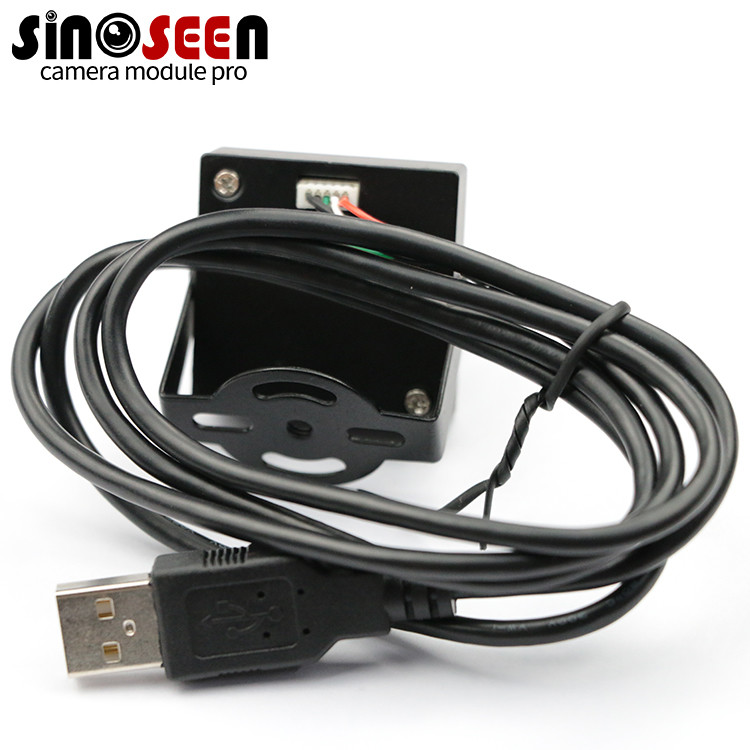

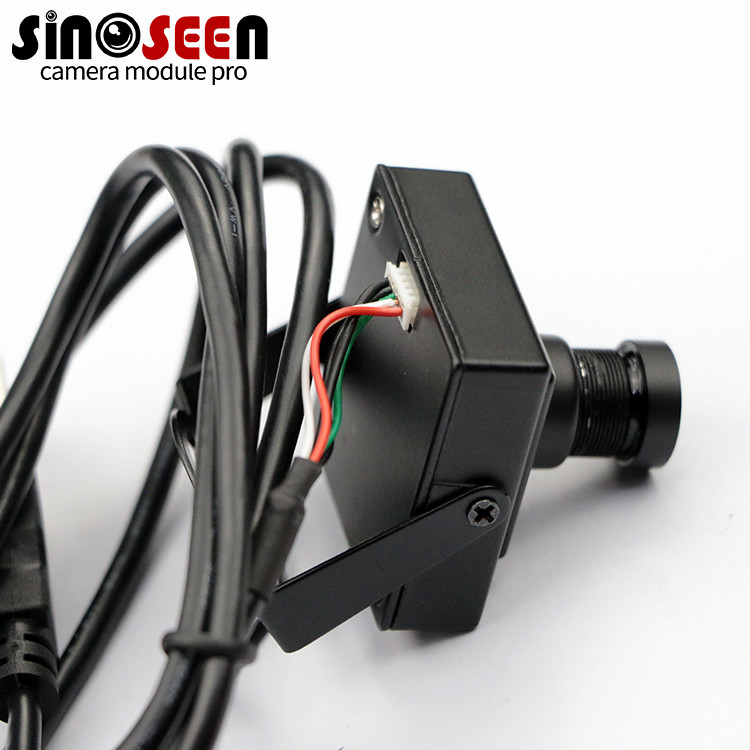

This is one of our designed USB camera module with metal case. It uses a 720P 1MP H62 chip, and the overall size is 38x38mm. You can also choose any other sensor of any size for this design.

There are many benefits of iron casing. In some harsh environments, such as water, fog, corrosive gas, etc., it can protect the module from being directly exposed to the outside, so that the service life of the module is longer and the output screen is more stable.

There are also many styles of shells, and the materials and processes are also different. If your camera module needs a case or housing, you can tell us your specific size and other needs, and we will choose the most suitable case for you.

Specification:2mp Camera Modules

Model No	SNS-1MP-H62-H1
Sensor	1/4’’ SOI JX-H62
Pixel	1 Mega Pixel
Most effective pixels	1296 (H) x 732 (V)
Pixel Size	3.0µm x 3.0µm
Resolution	1280x720; 640x480; 320x240;
Frame Rate	30fps
Compression format	MJPEG / YUV2 (YUYV)
Shutter Type	Electronic rolling shutter
Sensitivity	4300 mV/lux-sec
Focus type	Fixed focus/Manually adjustable
S/N ratio	37dB
Dynamic range	72dB
Interface type	USB 2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 1.7mm
	Lens size: 1/2.5’’
	FOV: 130°
	Thread size: M12*P0.5
Power consumption	DC5V, 100mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	35mm*35mm
Operating temperature	-30°C to 85°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
