    UHD Fixed Focus USB 2.0 Camera Module With Sony IMX179 Sensor

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS-PC292-V1.0
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    UHD Fixed Focus USB 2.0 Camera Module With Sony IMX179 Sensor

    UHD Fixed Focus USB 2.0 Camera Module With Sony IMX179 Sensor

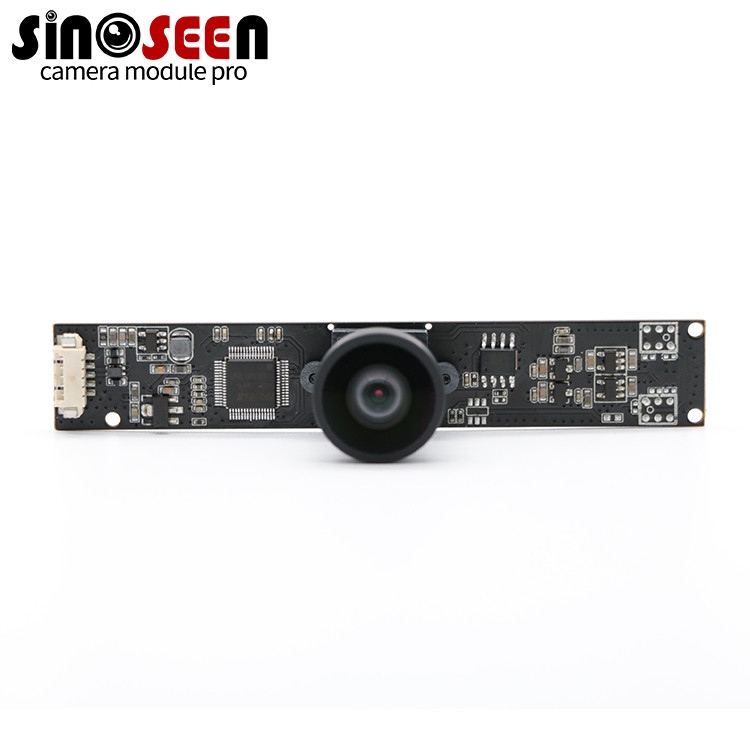

    8MP UHD Fixed Focus Customizable Size USB Camera Module With SONY IMX179 CMOS Sensor


    USB 2.0 Camera Module

    This is our latest customized 8MP USB camera module with SONY IMX179 sensor. The PCB size and lens angle are all customized according to the requirements given by the customer. In addition, the customer’s logo is printed.

    It supports below frame rates:

    MPEG

    3264x2448@15fps; 2592x1944@15fps; 1920x1080@30fps; 1600x1200@30fps; 1280x720@30fps; 960x540@30fps; 848x480@30fps; 640x480@30fps; 640x360@30fps; 320x240@30fps;

    YUYV2

    3264x2448@2fps; 2592x1944@2fps; 1920x1080@5fps; 640x480@30fps; 320x240@30fps;


    Specification


    Model No
    SNS-PC292-V1.0
    Sensor
    1/3.2’’ IMX179
    Pixel

    8 Mega Pixel

    Most effective pixels
    3264(H) x 2448(V)
    Pixel Size
    1.4µm x 1.4µm
    Compression format
    MJPG / YUY2
    Resolution
    see above
    Frame rate
    see above
    Shutter Type
    Electronic rolling shutter
    Focus type
    Fixed focus
    S/N ratio
    36dB
    Dynamic range
    60dB
    Interface type
    USB2.0
    Adjustable parameter
    Brightness/Contrast/Color saturation/Hue/Definition/
    Gamma/White balance/Exposure
    Lens
    Focal length: 3.6mm
    Lens Size: 1/3 inch
    FOV: 95° (Optional)
    Thread Size: M12*P0.5
    Audio frequency
    Support
    microphone
    Built-in
    Power supply
    USB BUS POWER
    Power consumption
    DC 5V, 200mA
    Main chip
    DSP/SENSOR/FLASH
    Auto Exposure Control (AEC)
    Support
    Auto White Balance (AEB)
    Support
    Auto Gain Control (AGC)
    Not Supported
    Dimension
    90MM x 15MM (customizable)
    Storage temperature
    -20°C to 70°C
    Operating temperature
    0°C to 60°C
    USB cable length
    Default

    Support OS
    WinXP/Vista/Win7/Win8/Win10
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC


    UHD Fixed Focus USB 2.0 Camera Module With Sony IMX179 SensorUHD Fixed Focus USB 2.0 Camera Module With Sony IMX179 Sensor

    Shenzhen Sinoseen Technology Co.,Ltd

    China top 10 camera module manufacturer

    We customize all kinds of USB/MIPI/DVP camera module as per your request


    Camera Module Application Areas


    0.3MP

    Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

    Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

    Global shutter:OV7251 (1/7.5”,B/W)

    High frame rate:200FPS SC031GS(1/6”,B/W)

    Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)


    1MP

    Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

    Small size for endoscope:OV9734 GC1009 HM1091

    Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

    Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)


    2MP

    Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

    1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

    1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

    1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

    1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

    1080P-WDR (30FPS): AR0230 AR0331(300W)

    1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

    1080P big size: IMX385

    1080P global shutter: OG02B10(color) OG02B1B(B/W)


    5MP

    500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

    FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)


    8MP

    800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

    8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)


    13MP-16MP

    IMX214(13M) IMX258(13M) IMMX298(16M)


    USB3.0

    IMX335 OV5648 IMX179 IMX307 PS5268


    H264

    GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
