    S5K3H7 Sensor MIPI Interface 8MP Camera Module For Mobile Phone

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS-81150-V1.0
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    S5K3H7 Sensor MIPI Interface 8MP Camera Module For Mobile Phone

    S5K3H7 Sensor MIPI Interface 8MP Camera Module For Mobile Phone

    8MP MIPI Camera Module With Samsung S5K3H7 Sensor For Mobile Phone Front Camera


    8MP Camera Module

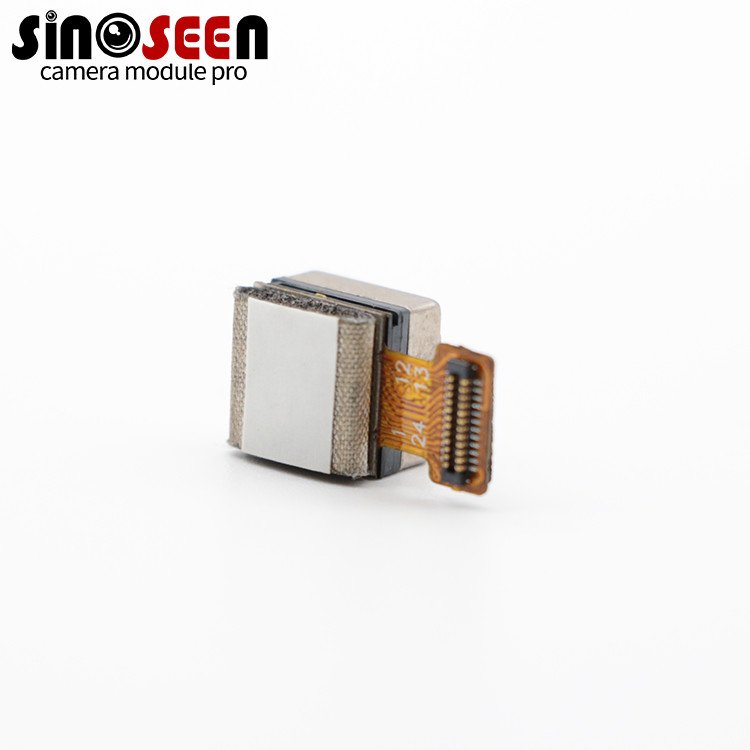

    This is an 8MP MIPI camera module with Samsung sensor S5K3H7. It is used as the front camera of a mobile phone. The image is very clear and stable.

    If you need to design a camera module for your mobile phone or tablet, congratulations, you have found the right person. We have extensive experience in the field of mobile phones and tablet cameras. We have customized a variety of camera modules for hundreds of mobile phones, high-pixel, low-pixel, fixed focus, auto focus, various structure sizes, we can perfectly provide you with the right plan.


    Specification

    Model No

    SNS-81150-V1.0

    Sensor

    1/3.2’’ Samsung S5K3H7 CMOS

    Pixel

    8 Mega Pixel

    Most effective pixels

    3264(H) x 2448(V)

    Pixel Size

    1.4µm x 1.4µm

    Image area

    3864um (H) x 2196um (V)

    Compression format

    MJPEG / YUV2 (YUYV)

    Resolution & Frame rate

    See above

    Shutter Type

    Electronic rolling shutter

    Focus type

    Auto focus

    Chroma

    Color, RGB

    Clock Frequency

    6 to 72 MHz

    Dimension

    Customizable

    Storage temperature

    -30°C to 70°C

    Operating temperature

    0°C to 60°C


    S5K3H7 Sensor MIPI Interface 8MP Camera Module For Mobile PhoneS5K3H7 Sensor MIPI Interface 8MP Camera Module For Mobile Phone


    Shenzhen Sinoseen Technology Co.,Ltd

    China top 10 camera module manufacturer

    We customize all kinds of USB/MIPI/DVP camera module as per your request


    FAQ:


    Q1. How to choose the right camera module?
    A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


    Q2. How to start proofing?
    A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


    Q3: How do I send the payment?
    A: Currently we accept T/T bank transfer and Paypal.


    Q4: How long does it take to make a sample?
    A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


    Q5: How long will it take to receive the sample after it is ready?
    A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
