Sony IMX179 Sensor USB 3.0 Camera Module Auto Focus 4k Ultra HD

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-GM028M-V1.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Sony IMX179 Sensor USB 3.0 Camera Module Auto Focus 4k Ultra HD

Sony IMX179 Sensor USB 3.0 Camera Module Auto Focus 4k Ultra HD

8MP USB3.0 Camera Module Auto Focus 4k Ultra HD lens with Sony IMX179 sensor

IMX179 Camera Module description

This is one of our best selling USB3.0 camera modules. It is autofocus with 8 megapixels IMX179 CMOS image sensor from SONY. The image quality is excellent and stable.

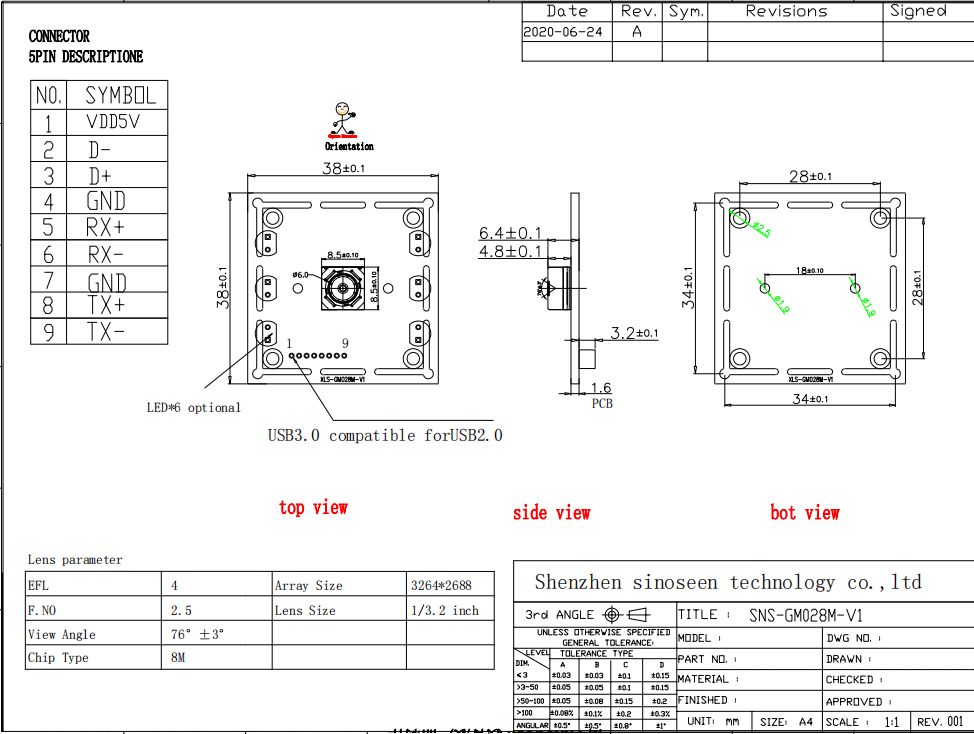

The module size is 38MMx38MM (compatible with 32MMx32MM), we can adjust the size and shape of the module according to your requirements;

It supports below frame rates:

MPEG

3264x2448@15fps； 2592x1944@15fps； 1920x1080@30fps； 1600x1200@30fps； 1280x720@30fps； 960x540@30fps； 848x480@30fps； 640x480@30fps； 640x360@30fps； 320x240@30fps；

YUYV2

3264x2448@2fps； 2592x1944@2fps； 1920x1080@5fps； 640x480@30fps； 320x240@30fps；

Specification

Model No	SNS-GM028M-V1.0
Sensor	1/3.2’’ IMX179
Pixel	8 Mega Pixel
Most effective pixels	3264(H) x 2448(V)
Pixel Size	1.4µm x 1.4µm
Compression format	MJPG / YUY2
Resolution	see above
Frame rate	see above
Shutter Type	Electronic rolling shutter
Focus type	Auto/Fixed focus
S/N ratio	36dB
Dynamic range	60dB
Interface type	USB 3.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens Size: 1/3 inch
	FOV: 90°
	Thread Size: M12*P0.5
Audio frequency	Support
microphone	Built-in
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Not Supported
Dimension	38MM x 38MM (32MM x 32MM)
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
