    USB Interface Ultral HD 4k 8MP Camera Module With SONY IMX317 Sensor

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS-BE508M-V2
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    USB Interface Ultral HD 4k 8MP Camera Module With SONY IMX317 Sensor

    USB Interface Ultral HD 4k 8MP Camera Module With SONY IMX317 Sensor

    Micro USB Interface 8MP Ultral HD 4k camera module With SONY IMX317 Sensor


    HD 4k 8MP Camera Module

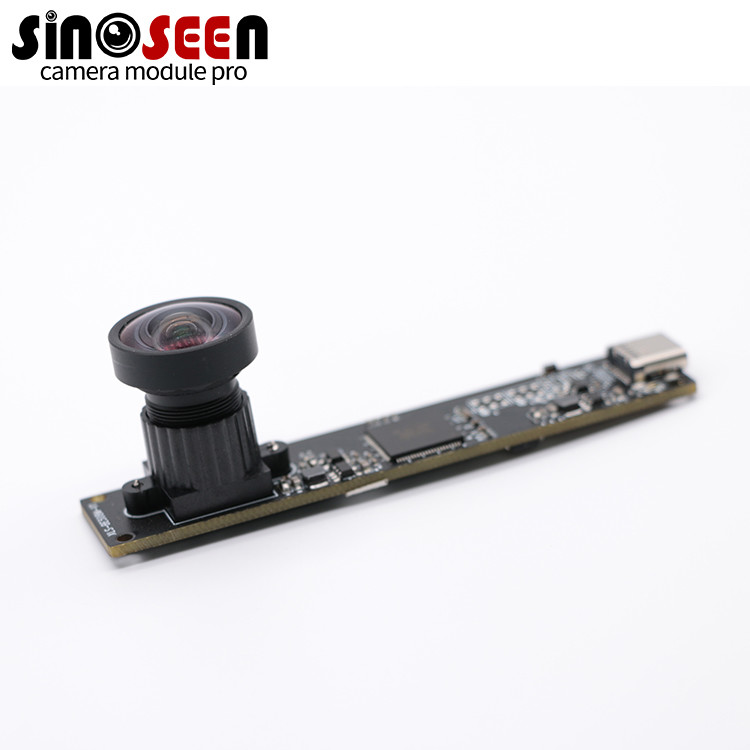

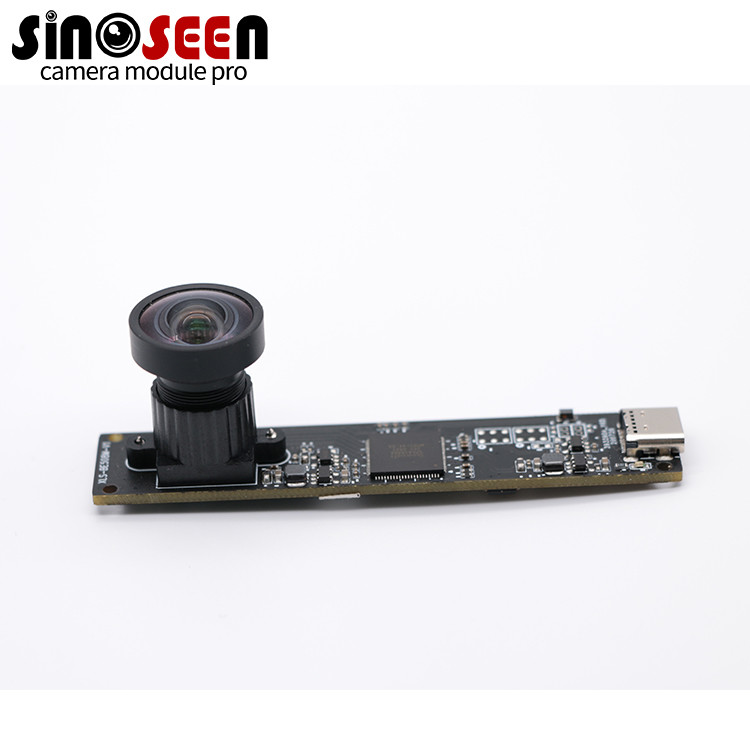

    This is a long strip shape USB camera module with sensor SONY IMX317.Due to the requirements of the housing structure, we placed the lens on one end of the PCB board according to customer requirements. IMX317 is an excellent 8MP UHD sensor, and after continuous firmware optimization, we are very confident to tell you that this is the best 8MP camera module at present. And it can also support 30FPS at full resolution, which is very rare.
    It supports the following resolutions:
    MJPG
    3840*2160 30fps 2592*1944 30fps 2048*1536 30fps 1920x1080 30fps 1280x720 30fps 800x600 30fps 640x480 30fps 320x240 30fps
    YUYV2
    3840*2160 3fps 2592*1944 5fps 2048*1536 5fps 1920x1080 15fps 1280x720 15fps 800x600 30fps 640x480 30fps 320x240 30fps

    This module is widely used in high-definition photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields


    Specification

    Model No

    SNS-BE508M-V2

    Sensor

    1/2.5’’ SONY IMX317 CMOS

    Pixel

    8 Mega Pixel

    Most effective pixels

    3840(H) x 2160(V)

    Pixel Size

    1.62µm x 1.62µm

    Image area

    3864um (H) x 2196um (V)

    Compression format

    MJPEG / YUV2 (YUYV)

    Resolution & Frame rate

    See above

    Shutter Type

    Electronic rolling shutter

    Focus type

    Fixed focus

    Chroma

    Color, RGB

    Clock Frequency

    6 to 72 MHz

    Microphones

    Built-in

    Interface type

    Micro USB

    Adjustable parameter

    Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure

    Lens

    Focal length: 3.6mm

    Lens construction: 5E+IR

    D FOV: 100 degree

    Thread Size: M12*P0.5

    Audio frequency

    Optional

    Power supply

    USB BUS POWER

    Operating Voltage

    DC 5V

    Operating Current

    260mA

    Main chip

    DSP/SENSOR/FLASH

    Auto Exposure Control (AEC)

    Support

    Auto White Balance (AEB)

    Support

    Auto Gain Control (AGC)

    Support

    Dimension

    Customizable

    Storage temperature

    -20°C to 70°C

    Operating temperature

    0°C to 60°C

    USB cable length

    Default

    Support OS

    WinXP/Vista/Win7/Win8/Win10
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC


    USB Interface Ultral HD 4k 8MP Camera Module With SONY IMX317 SensorUSB Interface Ultral HD 4k 8MP Camera Module With SONY IMX317 Sensor


    Shenzhen Sinoseen Technology Co.,Ltd

    China top 10 camera module manufacturer

    We customize all kinds of USB/MIPI/DVP camera module as per your request


    Current available USB solution


    0.3MP

    Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

    Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

    Global shutter:OV7251 (1/7.5”,B/W)

    High frame rate:200FPS SC031GS(1/6”,B/W)

    Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)


    1MP

    Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

    Small size for endoscope:OV9734 GC1009 HM1091

    Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

    Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)


    2MP

    Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

    1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

    1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

    1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

    1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

    1080P-WDR (30FPS): AR0230 AR0331(300W)

    1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

    1080P big size: IMX385

    1080P global shutter: OG02B10(color) OG02B1B(B/W)


    5MP

    500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

    FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)


    8MP

    800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

    8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)


    13MP-16MP

    IMX214(13M) IMX258(13M) IMMX298(16M)


    USB3.0

    IMX335 OV5648 IMX179 IMX307 PS5268


    H264

    GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
