Ultra Compact 1080P 60FPS HD 2MP Camera Module Himax Sensor HM2160

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-USB2160-V1.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Ultra Compact 1080P 60FPS HD 2MP Camera Module Himax Sensor HM2160

Ultra Compact 1080P 60FPS HD 2MP Camera Module Himax Sensor HM2160

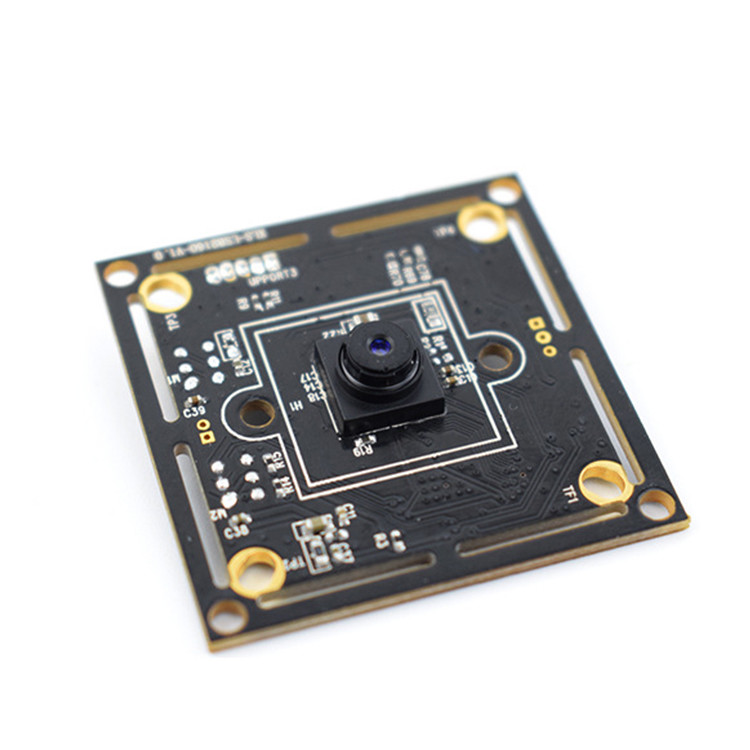

Low Power Consumption Ultra Compact 1080P 60FPS FHD 2MP USB Camera Module With Himax Sensor HM2160

60FPS HD 2MP Camera Module

This is a 2MP FHD USB camera module that can do 1080p at 60FPS with low power consumption of <130mW at 60FPS ,and 100mW for 30FPS.It is with a Himax HM2160 sensor.HM2160 is am ultra-compact 1/6" optical format 1080p FHD sensor with high senstivity 1.4um UltraSense BSI pixel,operates up to 60 frame per second at full resolution and up to 120FPS in sub-sample or bin mode.

The current design is standard 38x38mm,competible for 32x32mm.But this is a ultra compact 1/6" sensor,do you can do it very small if you need.

Specification

Pixel Size	1.4μm x 1.4μm
Effective Pixels	HD 1936(H)X1096(V)
Image Sensor	1/6"
AEC/AWB/AGC	Supported
Lens View	FOV90°(Optional),F/N(Optional)
Interface	USB BUS POWER 5P-1.25mm
Operating Voltage	DC5V
Working Current	120mA~220mA

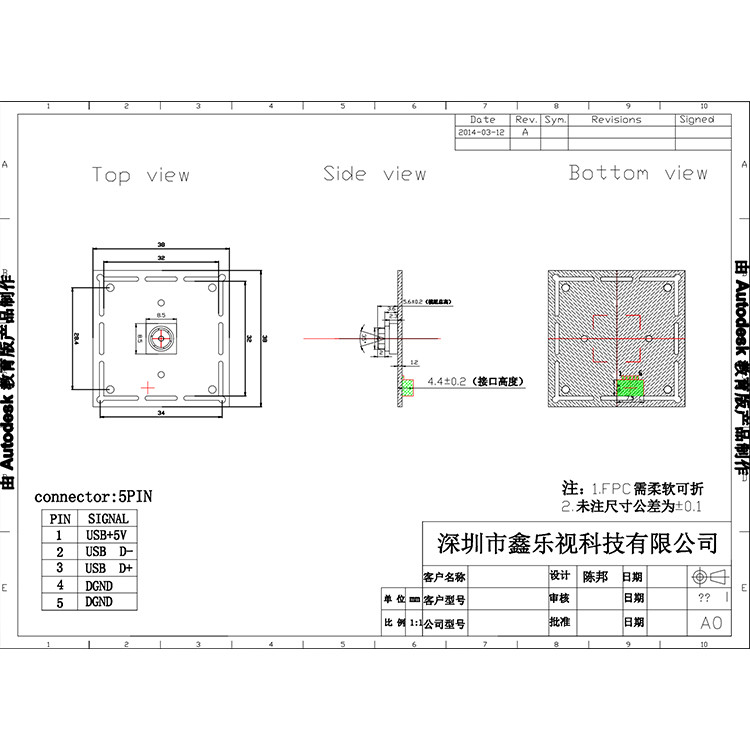

Dimension	32*32mm
Cable Length	1m/1.5m

Ultra Compact 1080P 60FPS HD 2MP Camera Module Himax Sensor HM2160

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
