Small Size 5P Lens 2 Megapixel Camera Module Full HD HM2131 Chip

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-DZ582M
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Small Size 5P Lens 2 Megapixel Camera Module Full HD HM2131 Chip

Small Size 5P Lens 2 Megapixel Camera Module Full HD HM2131 Chip

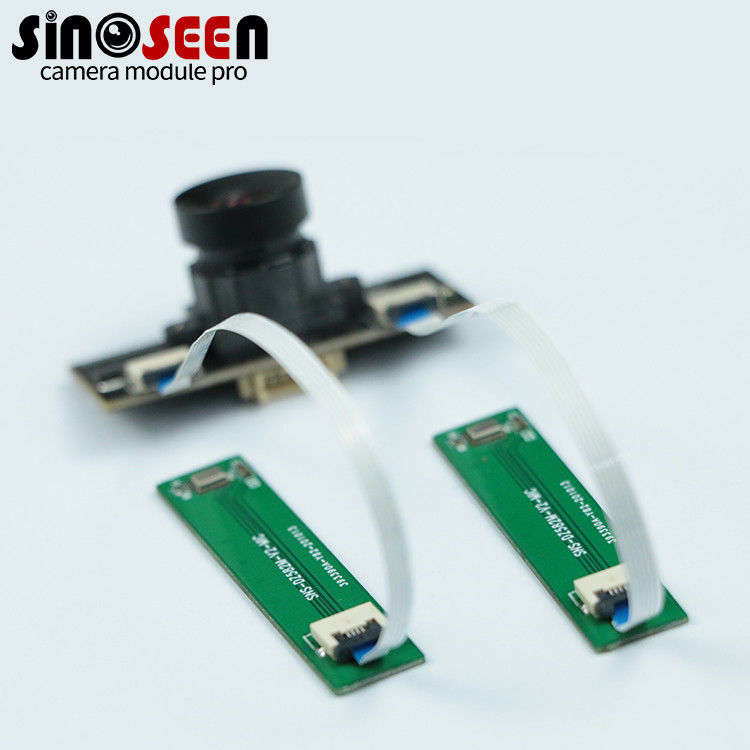

Small Size 2MP Resolution 1080P FHD USB 2.0 PCB Camera Module With Himax HM2131 Sensor

Camera Module Full HD

This is our latest FHD 2MP camera module tailored for customers. It uses the HM2131 chip we recommend to customers. HM2131 itself is a very good chip, with good image quality and very stable performance. In addition, we also matched the 5P lens according to customer requirements. Excellent chip and excellent lens together constitute a perfect camera module. It is perfect for customers to use it for webcams and video conferencing.

In terms of firmware, we also changed the version one by one, and finally determined the most suitable picture effect.

Due to the structure of the customer's housing, we used the design of an external microphone. This makes the microphone flexible and can receive sounds from all directions.

You can also customize the required solution according to the actual needs, install the LED or customize the required size, we have no problem.

Specification

Model No	SNS-DZ582M parallel camera module
Sensor	1/2.7’’ Himax HM2131 CMOS
Pixel	2 Mega Pixel
Most effective pixels	1920(H) x 1080(V)
Pixel Size	3.0µm x 3.0µm
Protocol & Connection	Plug-&-Play (UVC compliant)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Output Format	10b / 12b RAW
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	38.9dB
CRA	12°
Sensitivity	4600mV / Lux – sec
Interface type	USB2.0
Lens FOV	90°
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Audio frequency	Optional
Microphone	2
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Small Size 5P Lens 2 Megapixel Camera Module Full HD HM2131 Chip

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
