High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones

Shenzhen Sinoseen Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones from wholesalers

    Buy cheap High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones from wholesalers
    • Buy cheap High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones from wholesalers
    • Buy cheap High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones from wholesalers
    • Buy cheap High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones from wholesalers
    • Buy cheap High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones from wholesalers

    High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS-GM872-V1
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones

    High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones

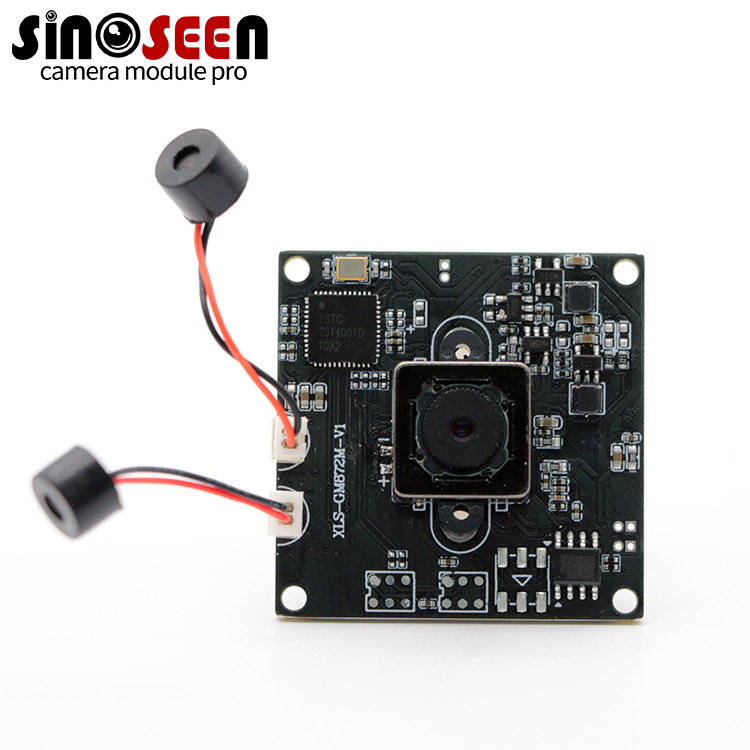

    High Dynamic Range HDR 2MP 1080P 30FPS Auto Focus USB Camera Module With 2 Microphones


    2MP Camera Module 1080P

    This is a USB camera module customized by one of our customers recently to be used as a web camera. The customer requires 1080P, and the image should be real and the color should be realistic. So we chose OV2735, which has HDR function, can restore the true color of the image very well, and the details are also handled very well, making the picture closer to the image seen by the human eye.

    The lens focusing method is auto focus, so that it can keep the sharp state at any time when the subject is moving. In addition, in order to facilitate sound reception, we also specially designed two external microphones for customers. Customers can adjust the position of the microphone in its own housing, which is very convenient. Of course, if your equipment or housing space is limited, we can also design the microphone to be SMT, which can save a lot of space, and the effect is also very good.


    Specification

    Module No

    SNS-GM872M-V1

    Pixel Size

    3.0μm x 3.0μm

    Effective Pixels

    1920(H)X1080(V)

    Video output

    YUV2 MJPG

    Active Array Size Video Rate

    1080p@30FPS

    Image Sensor

    1/2.7" OV2735

    SNR max

    TBDdB

    Dynamic range

    TBDdB

    OTG

    USB2.0 OTG

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameter

    Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure

    Lens view

    FOV95°(optional),F/N(optional)

    Interface

    USB BUS POWER 5P-1.25mm

    Operating Voltage

    DC5V

    Operating Current

    MAX120MMA

    Operating temperature

    0~60℃

    Storage temperature

    -20~70℃

    Cable length

    Defualt

    OS

    WinXP/Vista/Win7/Win8

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Wince with UVC

    Android 4.0 or above with UVC

    High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 MicrophonesHigh Dynamic Range 2MP Camera Module 1080P 30FPS With 2 MicrophonesHigh Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones


    Shenzhen Sinoseen Technology Co.,Ltd

    China top 10 camera module manufacturer

    We customize all kinds of USB/MIPI/DVP camera module as per your request


    FAQ:


    Q1. How to choose the right camera module?
    A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


    Q2. How to start proofing?
    A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


    Q3: How do I send the payment?
    A: Currently we accept T/T bank transfer and Paypal.


    Q4: How long does it take to make a sample?
    A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


    Q5: How long will it take to receive the sample after it is ready?
    A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
