Monochrome Image 5MP Micro Camera Module With Semiconductor MT9P031 Sensor

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-5MP-MT9P031-M1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Monochrome Image 5MP Micro Camera Module With Semiconductor MT9P031 Sensor

Monochrome Image 5MP Micro Camera Module With Semiconductor MT9P031 Sensor

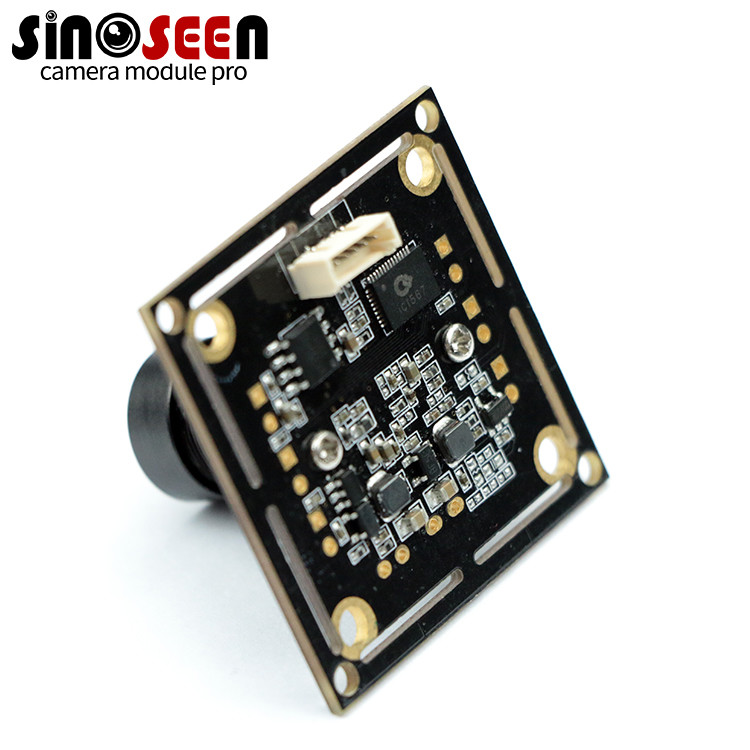

5MP Monochrome Black And White Image USB Camera Module With ON Semiconductor Micron MT9P031 CMOS Sensor

5MP Camera Module

This is a camera module that realizes black and white images through software. It is 5MP (2592x1944) with ON Semiconductor MT9P031 sensor. Although it is only a black and white effect realized by software, the quality is excellent and stable.
The current module size is 38mmx38mm and compatible with 32mm x 32mm. You can customize the size of your own camera module according to your actual needs. We also have a variety of other lenses for you to choose from. The focal length is from 2.8mm to 16mm and the FOV is from 20° to 200°.

Specification

Model No	SNS-5MP-MT9P031-M1
Sensor	1/2,5’’ ON-Semi MT9P031 CMOS
Pixel	5 Mega Pixel
Image color	Monochrome, black/white
Most effective pixels	2592(H) x 1944(V)
Pixel Size	2.2µm x 2.2µm
Image area	5700um(H) x 4280um (V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	38.1dB
Dynamic range	70.1dB
Responsivity	1.4 V/lux-sec (550 nm)
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens Size: 1/2.5 inch
	FOV: 70°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 250mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Microphones	Not supported
Dimension	38mm x 38mm (32mm x 32mm)
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Monochrome Image 5MP Micro Camera Module With Semiconductor MT9P031 Sensor

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
