MT9P001 MI5100 Sensor 5MP Camera Module 32x32mm Low Dark Current

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-5MP-MT9P001-S1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

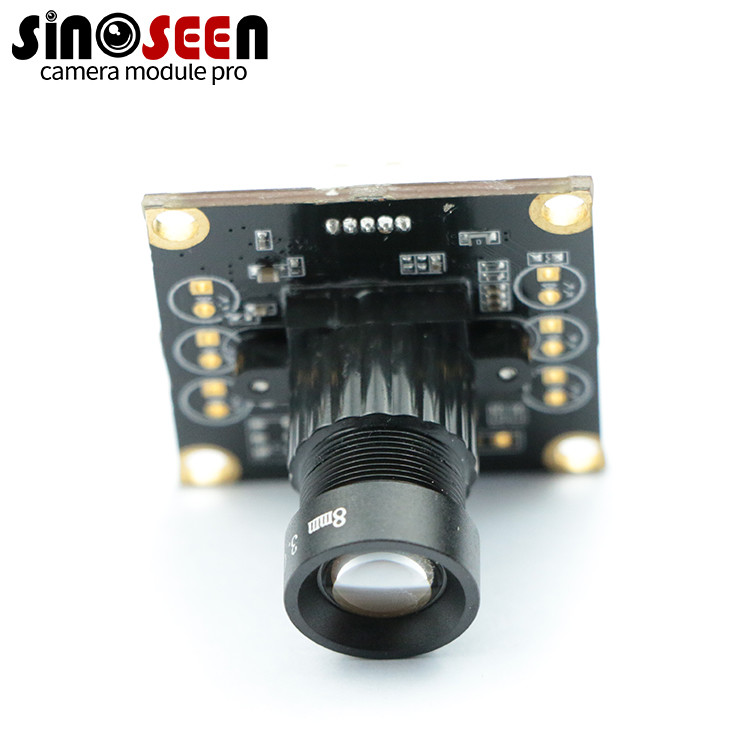

MT9P001 MI5100 Sensor 5MP Camera Module 32x32mm Low Dark Current

MT9P001 MI5100 Sensor 5MP Camera Module 32x32mm Low Dark Current

Sinoseen Factory Price 5MP USB Camera Module Cmos With ON Semiconductor MT9P001 MI5100 Sensor

5MP Camera Module

This is a 5MP USB camera module we made with sensor MT9P001 which also known as MI5100 from ON Semiconductor,it is a good sensor with great imaging performance and has below feaures:

• High Frame Rate • Superior Low-light Performance • Low Dark Current • Global Reset Release, which Starts the Exposure of All Rows Simultaneously • Bulb Exposure Mode, for Arbitrary Exposure Times • Snapshot Mode to Take Frames on Demand • Horizontal and Vertical Mirror Image • Column and Row Skip Modes to Reduce Image Size without Reducing Field-of-view (FOV) • Column and Row Binning Modes to Improve Image Quality when Resizing • Simple Two-wire Serial Interface • Programmable Controls: Gain, Frame Rate, Frame Size, Exposure • Automatic Black Level Calibration • On-chip Phase-Locked Loop (PLL)

Specification

Model No	SNS-5MP-MT9P001-S1
Sensor	1/2.5’’ Micron MT9P001 (also called MI5100)
Resolution	5 Mega Pixel
Most effective pixels	2592(H) x 1944(V)
Pixel Size	2.2µm x 2.2µm
Image area	5.70mm(H) x 4.28mm (V), 7.13mm diagonal
Compression format	YUY2/MJPG
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Color filter array	RGB Bayer pattern
Focus type	Fixed focus
S/N ratio	38.1dB
Dynamic range	70.1dB
Dark current	1.4 V/lux-sec (550nm)
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6MM
	Lens Size: 1/2.5 inch
	FOV: 72°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Automatic Exposure Control (AEC)	Support
Automatic White Balance (AEB)	Support
Automatic Gain Control (AGC)	Support
Dimension	32MM x 32MM
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 55°C
USB Wire	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC

MT9P001 MI5100 Sensor 5MP Camera Module 32x32mm Low Dark Current

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
