5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-5MP-HM5065-v1.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions

5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions

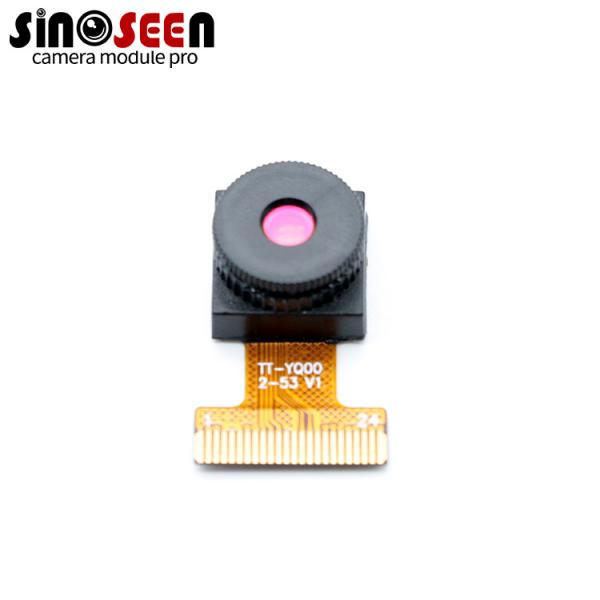

5MP Fixed Focus IR Filter HD DVP Camera Module With Himax HM5065 1/4 Inch Sensor

This is a 5MP DVP camera module with HM5065 sensor from Himax, HM5065 is a 5.0 megapixel resolution (2592Hx1944V) with 16 border pixels in 1/4" optical format.It support up to 15 fps with 5MP(JPEG422), 30 fps with analog binning 2x2,60 fps with analog bining 4x4.
The HM5065 DVP camera module is currently with a fixed focus lens, with IR 650nm filter, you can change it to auto focus, and choose 850nm IR filter or 940nm IR filter according to your actual needs. The module dimensions can also be customized.

Specification:DVP camera module

Pixel Size	1.4μm x 1.4μm
Effective Pixels	2592*1944
Image Sensor	1/4"
Sensor Type	HM5065
Lens View	FOV85°(Optional),F/N(Optional)
TV Distortion	<1% (Optional)
Temperature(Operation)	0~60℃
Temperature(Storage)	-20~70℃
Dimension	Customizable
