Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-0.3MP-BF3703-E1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs

Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs

Compact Design 0.3MP DVP Endoscope Camera Module With 6 LEDs In Waterproof Steel Tube

endoscopic camera module

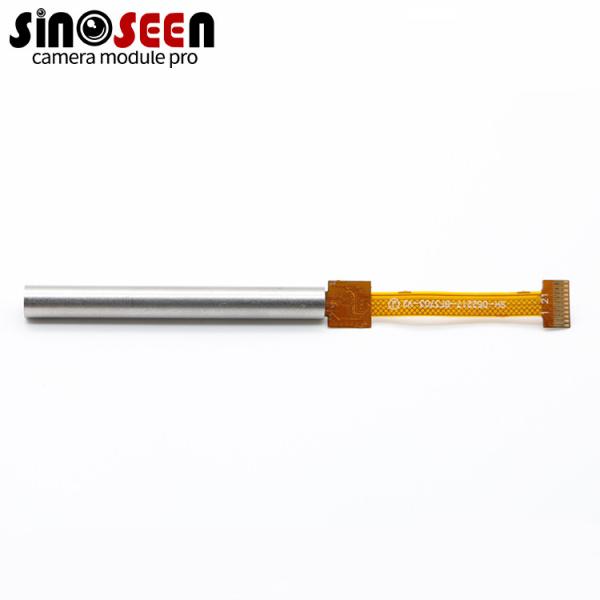

This is a compact design of the DVP endoscopic camera module, which is equipped with 6 LED lights around the lens to fill in the light, and placed in a steel tube. The front end of the lens can be treated with waterproof glue to achieve the purpose of waterproofing. This allows it to work normally in some humid or watery environments.
The chip uses BYD's BF3703, which is cheap and stable. If you need to win the market through price advantages, it will be a very good choice.

Specification

Module No	SNS-0.3MP-BF3703-E1
Pixel Size	2.2μm x 2.2μm
Effective Pixels	0.3MP 640(H) x 480(V)
Video output	Raw Bayer10bit/8bit
Active Array Size Video Rate	VGA@30FPS; QVGA@90FPS
Image Sensor	1/10"
Sensor Type	BYD BF3703
Lens view	FOV55°(optional),F/N(optional)
TV Distortion	<1%
AEC	Support
AEB	Support
AGC	Support
Operating voltage	AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature	-20～70℃
Storage temperature	0～50℃
Dimensions	Customizable

Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
