OV4689 Sensor Stereo 3D Dual Lens Camera Module For Facial
Regognition
Dual lens stereo 3D usb camera module with OV4689 sensor for Facial
regognition

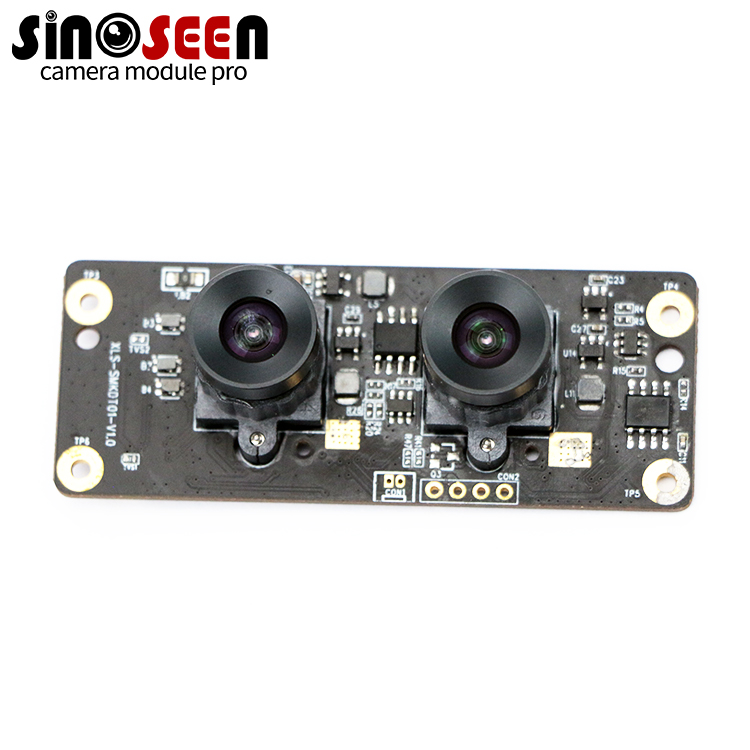

Dual Lens Camera Module
For the dual lens camera module, this is definitely the smallest
one, its size is 47.2MM * 14MM. Both sensors are high-quality
Omnivision OV4689 CMOS image sensors with a resolution of up to
3040x1080 (3.28 megapixels).
Only 1 DSP and 1 USB cable control 2 sensors/lenses, which makes it
a synchronous technology, that is, 2 photos are displayed as 1
image, and they have the same resolution and frame rate.
Both sensors/images are in color, but if needed, we can make one
image in color, the other image in black/white, or both in black
and white.
The camera module is widely used in 3D, artificial intelligence,
robotics, computer vision, game systems, VR, AR, face recognition,
Internet of Things, depth detection, distance detection,
automobiles, medical equipment, artificial intelligence, imaging,
machines and other applications Vision, security system, etc...
Specification
Model No | SNS-3MP-DualOV4689-V1.0 |
Sensor | 1/3’’ Omnivision OV4689 |
Pixel | 3 Mega Pixel |
Most effective pixels | 3040(H) x 1080(V) |
Pixel Size | 2.0µm x 2.0µm |
Image area | 5440um(H) x 3072um (V) |
Compression format | MJPG/YUY2 |
Resolution & Frame rate | See above |
Shutter Type | Electronic rolling shutter |
Focus type | Fixed focus |
S/N ratio | 39.3dB |
Dynamic range | 64.6dB |
Sensitivity | 1900mV / lux-sec |
Interface type | USB 2.0 high speed |
Lens | Lens Size: 1/3’’ inch |
| FOV: 50° |
| Thread Size: M8 |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 240mW-300mW |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | 47.2MM*14MM |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
Support OS | WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your
request
