2MP Endoscopic Microcontroller Camera Module GC2145 For Colposcope

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-2MP-GC2145-V1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

2MP Endoscopic Microcontroller Camera Module GC2145 For Colposcope

2MP Endoscopic Microcontroller Camera Module GC2145 For Colposcope

Customizable 2MP USB Endoscopic Camera Module With GC2145 For Colposcope

2MP USB camera module

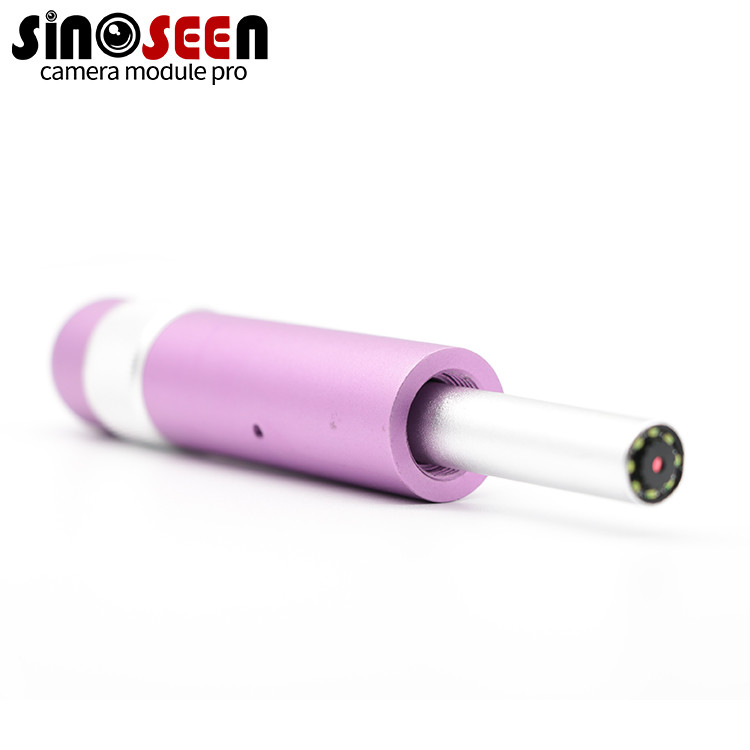

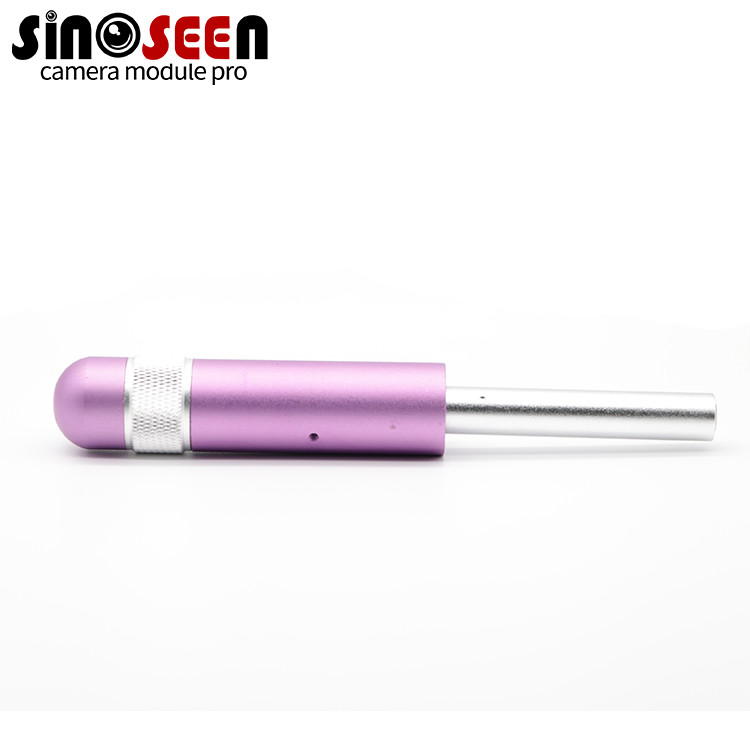

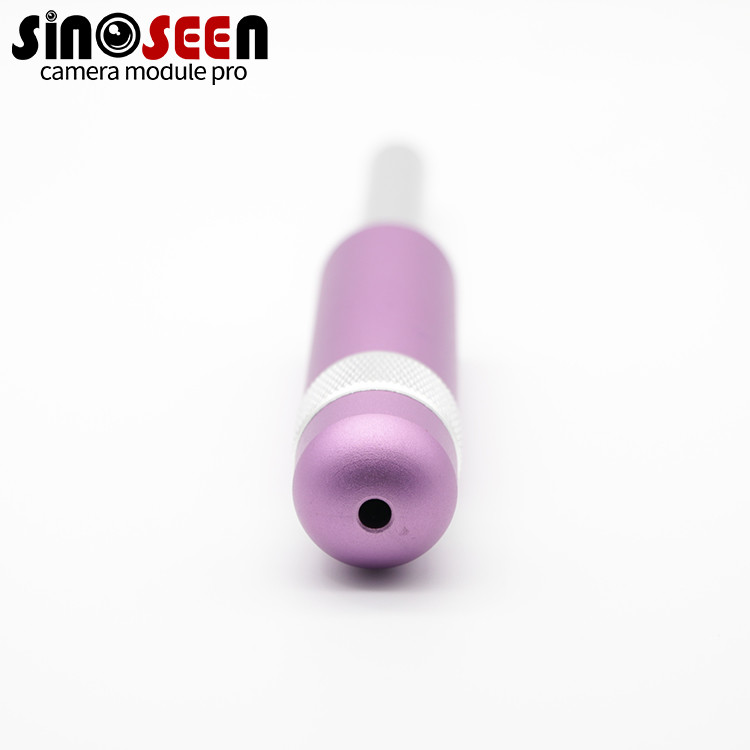

This is a customizable 2MP USB camera module with GC2145. Because it is used as a female vaginal examination, its structure is designed to be very compact. The entire camera module part is put into a safe and environmentally friendly aluminum alloy casing Inside, like most endoscopes, we also installed a circle of LED lights around the lens to fill in the light, and made the lens head waterproof.
You can customize the size you want according to your needs, or you can choose the lens you want, large lens, small lens, large angle, small angle are no problem. In mass production, you can also customize the cable length you want according to the actual situation. In short, everything can be customized, and we can help you achieve all your needs.

Specification

Module No	SNS-2MP-GC2145-V1
Pixel Size	1.75μm x 1.75μm
Effective Pixels	1600(H)X1200(V)
Video output	YUV2 MJPG
Active Array Size Video Rate	1600x1200 @15fps 1280x720 @ 15fps 640x480 @ 30 fps 320x240 @30fps
Image Sensor	1/5" GC2145
SNR max	TBDdB
Dynamic range	TBDdB
OTG	USB2.0 OTG
Drive free	USB Video Class(UVC)
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens view	FOV60°(optional),F/N(optional)
Interface	USB BUS POWER 5P-1.0mm
Working voltage	DC5V
Working current	120mA~220mA
Operating temperature	0～60℃
Storage temperature	-20～70℃
Cable length	Defualt
OS	WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC

2MP Endoscopic Microcontroller Camera Module GC2145 For Colposcope

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
