Type-C Interface Medical Endoscope Camera Module For Colonoscopy Gastroscopy

Type C Interface Medical Endoscope Camera Module For Colonoscopy Gastroscopy

Tiny Type-C Interface Medical Endoscope USB Camera Module For Colonoscopy Gastroscopy

Endoscope Camera Module

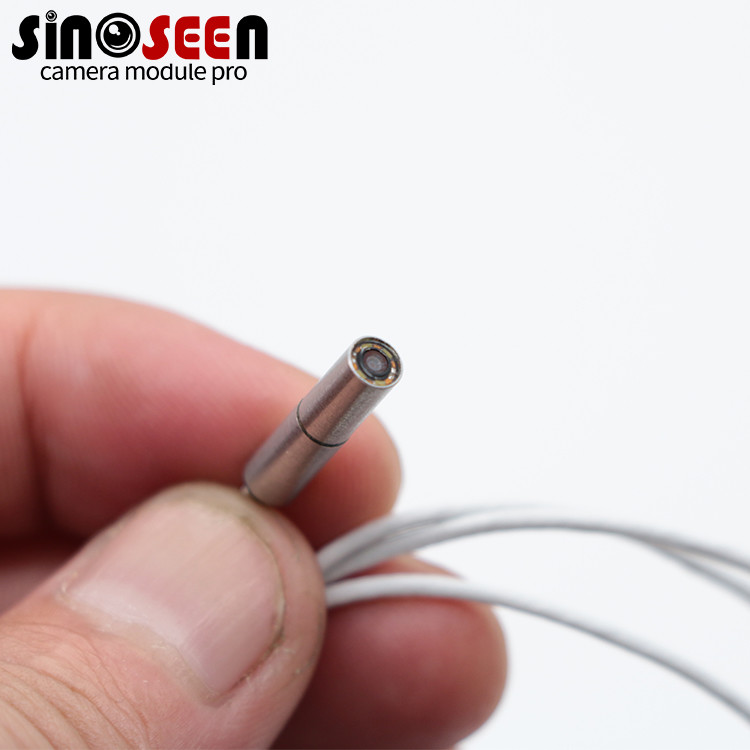

This is a very small USB medical endoscopic camera module, using Type C interface, can be connected to the mobile phone APP, plug and play, real-time viewing, very convenient. The lens is equipped with 4 LED fill lights, and water-proof glue is used for water-proof treatment.
Because of its compact design, this endoscopic camera module is very popular among doctors and is often used in colonoscopy endoscopes or gastroscopic endoscopes.
If you have similar needs, you can use this design to customize your own endoscopic camera module. We have a professional engineering team to discuss with you various requirements such as structural dimensions and functions.

Specification

Module No	SNS-1MP-OV9734-E2
Pixel Size	1.4μm x 1.4μm
Effective Pixels	1MP 1280(H) x 720(V)
Video output	Raw Bayer10bit/8bit
Active Array Size Video Rate	30FPS
Image Sensor	1/9"
Sensor Type	Omnivision OV9734
Lens view	FOV60°(optional),F/N(optional)
TV Distortion	<1%
AEC	Support
AEB	Support
AGC	Support
Operating voltage	AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature	-20～70℃
Storage temperature	0～50℃
Dimensions	Customizable
