Metal Housing LED USB Car Camera Module 2MP Waterproof Night Vision

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-GM872M-V1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Metal Housing LED USB Car Camera Module 2MP Waterproof Night Vision

Metal Housing LED USB Car Camera Module 2MP Waterproof Night Vision

Night Vision In Car USB Camera Module With LEDs In Waterproof Metal Housing

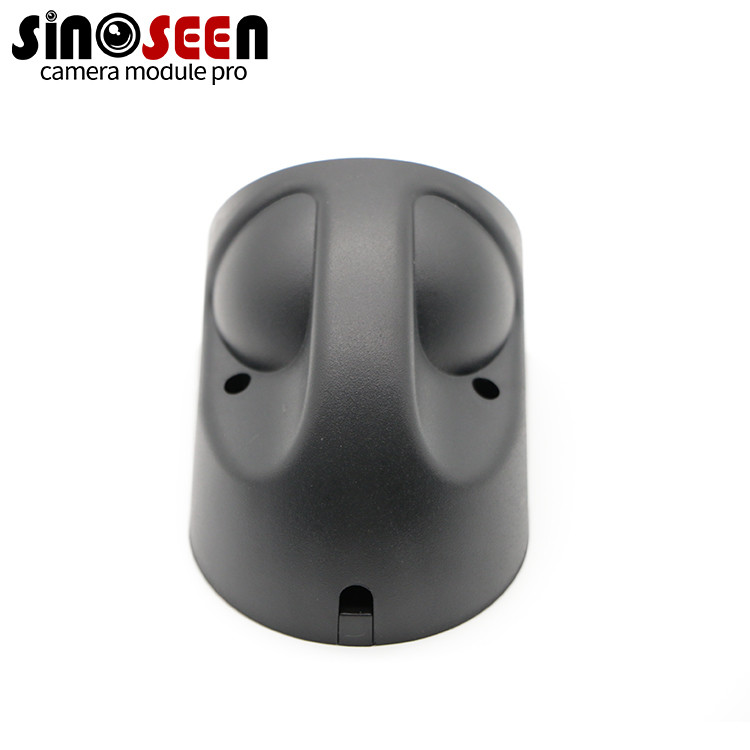

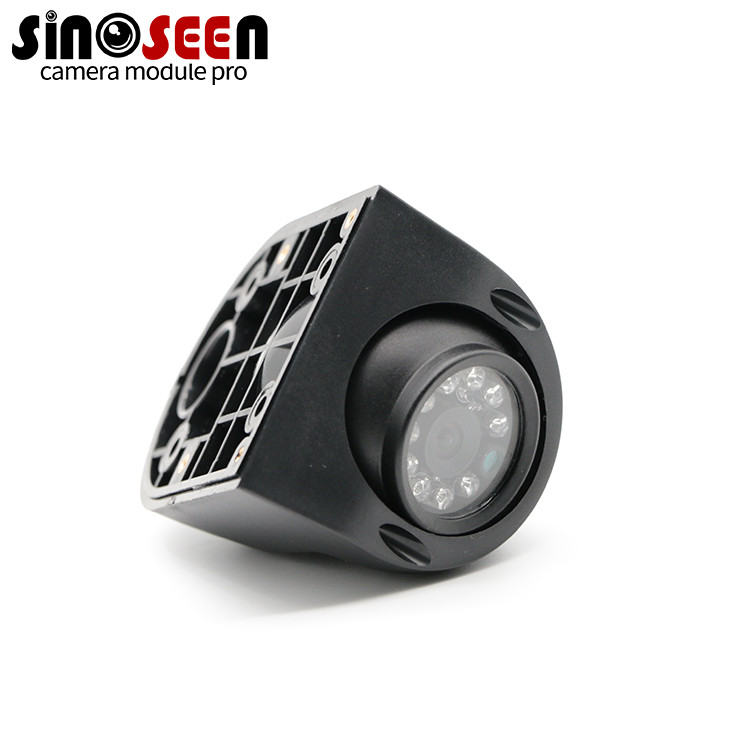

This mouse-like thing is actually a car camera, which uses an aluminum alloy and glass panel design and is waterproof.
The chip is OV2735 from OVT, 2MP, which can output 1920x1080. The picture quality is clear and stable. Like most other car cameras, its lens is also filled with a large number of LED lights to fill in the light.
The interface of this module is USB2.0, no driver is needed, plug and play, and the cable length can be customized according to actual needs.

Specification

Module No	SNS-GM872M-V1
Pixel Size	3.0μm x 3.0μm
Effective Pixels	1920(H)X1080(V)
Video output	YUV2 MJPG
Active Array Size Video Rate	1080p@30FPS
Image Sensor	1/2.7" OV2735
SNR max	TBDdB
Dynamic range	TBDdB
OTG	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens view	FOV95°(optional),F/N(optional)
Interface	USB BUS POWER 5P-1.25mm
Operating Voltage	DC5V
Operating Current	MAX120MMA
Operating temperature	0～60℃
Storage temperature	-20～70℃
Cable length	Defualt
OS	WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC

Metal Housing LED USB Car Camera Module 2MP Waterproof Night Vision
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
