OV9281 1MP USB Camera Module Fixed focus Global Shutter Fast Identification

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-USB9281-V1.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

OV9281 1MP USB Camera Module Fixed focus Global Shutter Fast Identification

OV9281 USB Camera Module Global Shutter Quick Identification Image Sensor

OV9281 Global Shutter Quick Identification Image Sensor Stereo Infrared USB Camera Module

OV9281 Global Shutter USB Camera Module

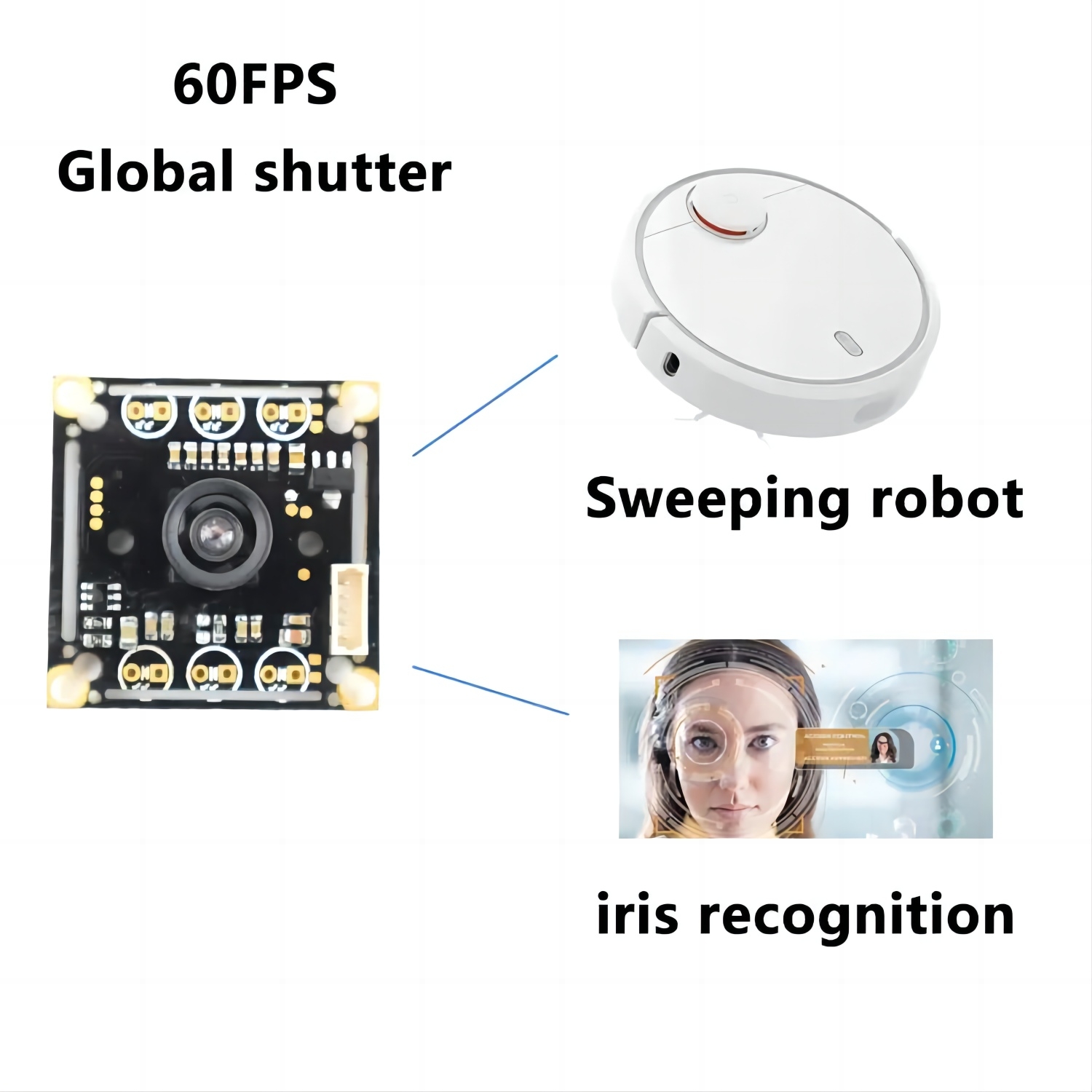

This is a 1MP global shutter camera module with an Omnivision OV9281 CMOS sensor that outputs black and white images and supports high frame rates up to 120 fps at full resolution. It is widely used in many consumer and industrial applications, including augmented reality, virtual reality (VR), drones, robotics, artificial intelligence, machine vision, computer vision, industrial automation, object tracking, agriculture, barcode scanning, and factory automation, among others.

Specification:Fixed focus

Pixel Size	3.0μm x 3.0μm
Effective Pixels	HD 1280(H)X800(V)
Image Sensor	1/4"
AEC/AWB/AGC	Supported
Lens View	FOV120°(Optional),F/N(Optional)
Interface	USB BUS POWER 5P-1.25mm
Operating Voltage	DC5V
Working Current	120mA~220mA
Dimension	38*38mm
Cable Length	0.6m

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Current avaliable global shutter USB camera module

Omnivision OV7251 0.3MP Monochrome(black and white)

Omnivision OV9281 1MP Monochrome(black and white)

ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color

Omnivision OG02B1B 2MP Monochrome(black and white)

Omnivision OG02B10 2MP RGB color
