OG02B10 60FPS USB Camera Module Global Shutter For Industrial Machine Vision Applications

Color Image Global Shutter Camera Module 1600*1200 Pixels With OG02B10 Sensor

Global Shutter Color Image 2MP USB Camera Module with Omnivision OG02B10 sensor

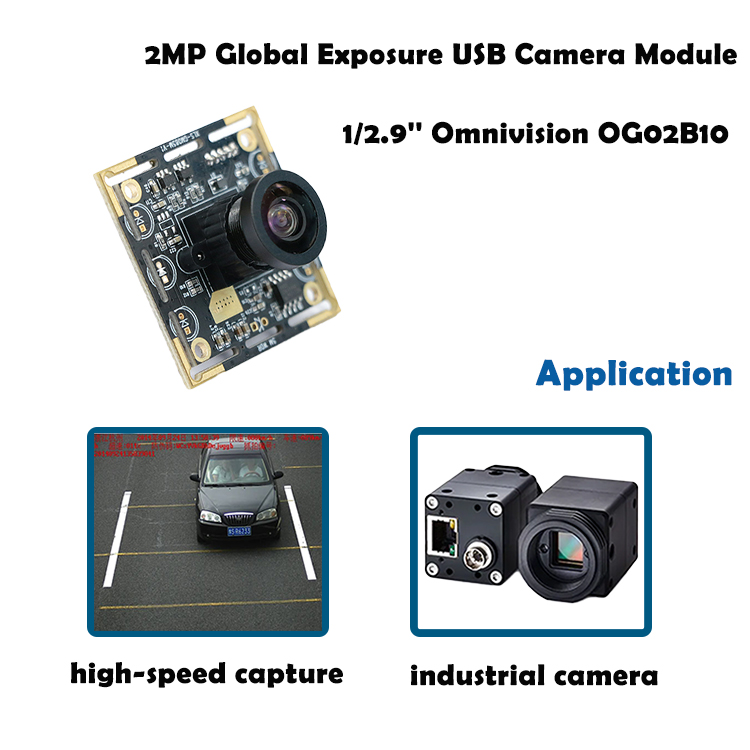

OG02B10 USB Camera Module

This is our latest and most advanced global shutter USB2.0 camera module with Omnivision's OG02B10 sensor. Unlike most other global shutter modules which usually have 0.3MP or 1MP resolution, this is the highest resolution you can get a global shutter camera module on the current market. The Tis sensor features color images and frame rates up to 60fps. There is also a monochrome version called the OG02B1B if you need a black and white image.

This camera module is widely used in many high-tech, high-end consumer and industrial machine vision applications such as AR/VR, industrial automation, robotics, drones, 3D modeling, imaging, barcode scanning, factory automation, healthcare, agriculture, and Artificial intelligence (AI), computer vision, etc.

Specification:Global Shutter Camera Module

Model No	SNS-2MP-OG02B10-V1.0
Sensor	1/2.9’’ Omnivision OG02B10
Pixel	2 Mega Pixel
Most effective pixels	1600(H) x 1200(V)
Pixel Size	3.0µm x 3.0µm
Chroma	COLOR
Compression format	MJPG / YUY2
Resolution & Frame rate	See above
Shutter Type	Global shutter
Focus type	Fixed Focus/Manually Adjustable
Clock Frequency	6 to 27 MHz
Chief Ray Angle (CRA)	15°
Microphone	Optional
Interface type	USB 2.0 high speed
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma
Lens	Lens Structure: 6G
	Lens Size: 1/2.5 inch
	H FOV: 90°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, <200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	38mmx38mm (compatible with 32mmx32mm)
Storage temperature	-20°C to 75°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Current avaliable global shutter USB camera module

Omnivision OV7251 0.3MP Monochrome(black and white)

Omnivision OV9281 1MP Monochrome(black and white)

ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color

Omnivision OG02B1B 2MP Monochrome(black and white)

Omnivision OG02B10 2MP RGB color
