    Monochrome Global Shutter Camera Module 2MP Fixed Focus RoHS Approved

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS-2MP-OG02B1B-V1.0
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    Monochrome Global Shutter Camera Module 2MP Fixed Focus RoHS Approved

    Monochrome Global Shutter Camera Module 2MP Fixed Focus RoHS Approved

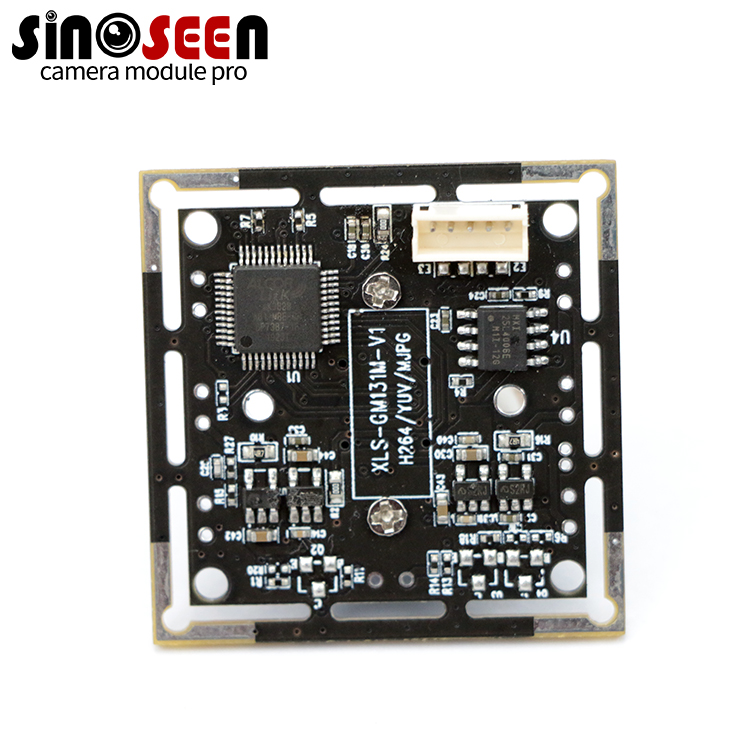

    Global Shutter Black And White Image 2MP USB Camera Module With Omnivision OG02B1B Sensor


    OG02B10 Camera Module 2MP

    This is one of our most advanced global shutter USB2.0 camera module with the sensor OG02B1B from Omnivision.Unlike most other global shutter modules that usually have a resolution of 0.3MP or 1MP,this module is 2MP(1600x1200),which is the highest resolution you can get in current market for a global shutter camera module.This sensor is with black and white images and frame rates up to 60fps.If you need color images,there is also a color version called OG02B10 with almost same specification.

    This camera module is widely used in many high-tech, high-end consumer and industrial machine vision applications, such as AR/VR, industrial automation, robotics, drones, 3D modeling, imaging, barcode scanning, factory automation, medical care, agriculture, and labor Intelligence (AI), computer vision, etc.


    Specification
    Model No
    SNS-2MP-OG02B1B-V1.0
    Sensor
    1/2.9’’ Omnivision OG02B1B
    Pixel
    2 Mega Pixel
    Most effective pixels
    1600(H) x 1200(V)
    Pixel Size
    3.0µm x 3.0µm
    Chroma
    Monochrome
    Compression format
    MJPG / YUY2
    Resolution & Frame rate
    See above
    Shutter Type
    Global shutter
    Focus type
    Fixed Focus/Manually Adjustable
    Clock Frequency
    6 to 27 MHz
    Chief Ray Angle (CRA)
    15°
    Microphone
    Optional
    Interface type
    USB 2.0 high speed
    Adjustable parameter
    Brightness/Contrast/Color saturation/Hue/Definition/Gamma
    Lens
    Lens Structure: 6G
    Lens Size: 1/2.5 inch
    H FOV: 90°
    Thread Size: M12*P0.5
    Audio frequency
    Optional
    Power supply
    USB BUS POWER
    Power consumption
    DC 5V, <200mA
    Main chip
    DSP/SENSOR/FLASH
    Auto Exposure Control (AEC)
    Support
    Auto White Balance (AEB)
    Support
    Auto Gain Control (AGC)
    Support
    Dimension
    38mmx38mm (compatible with 32mmx32mm)
    Storage temperature
    -20°C to 75°C
    Operating temperature
    0°C to 60°C
    USB cable length
    Default
    Support OS
    WinXP/Vista/Win7/Win8/Win10
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC

    Shenzhen Sinoseen Technology Co.,Ltd

    China top 10 camera module manufacturer

    We customize all kinds of USB/MIPI/DVP camera module as per your request


    Current avaliable global shutter USB camera module


    Omnivision OV7251 0.3MP Monochrome(black and white)


    Omnivision OV9281 1MP Monochrome(black and white)


    ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color


    Omnivision OG02B1B 2MP Monochrome(black and white)


    Omnivision OG02B10 2MP RGB color
