140 Degrees Wide Angle Face Recognition Camera Module Fixed Focus 5MP

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-PC293-V1.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

140 Degrees Wide Angle Face Recognition Camera Module Fixed Focus 5MP

140 Degrees Wide Angle Face Recognition Camera Module Fixed Focus 5MP

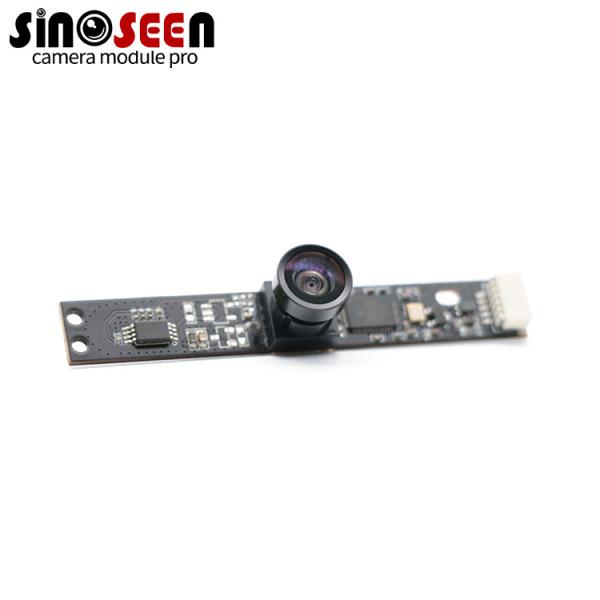

140 Degrees Wide Angle No Distortion Fixed Focus 5MP HD Face Recognition USB Camera Module

This is a 5MP face recognition USB camera module with a 140 degree wide-angle lens without distortion.The sensor is OV5640 from Omnivision Technology, OV5640 is a 5MP chip that is widely used and recognized by customers. It can output a resolution of up to 2592x1944. The picture quality is excellent and stable.
In this face recognition USB camera module, we made the PCB board into a size of 62mmx9mm according to the customer's needs.If you have similar needs, we can also customize the size of the PCB board according to your actual needs, choose the appropriate lens angle, and print your logo.

Specification :USB camera module

Model No	SNS-PC293-V1.0
Pixel Size	1.4μm x 1.4μm
Effective Pixels	HD 2592(H)X1944(V)
Image Sensor	1/4"
AEC/AWB/AGC	Supported
Lens View	FOV140°(Optional),F/N(Optional)
Interface	USB BUS POWER 5P-1.0mm
Operating Voltage	DC5V
Working Current	120mA~220mA
Dimension	62X9mm
Cable Length	1m/1.5m

140 Degrees Wide Angle Face Recognition Camera Module Fixed Focus 5MP
