8MP 30FPS HDR Face Recognition Camera Module MIPI Interface For Cell Phone

8MP 30FPS HDR Fixed Focus MIPI Camera Module For Cellular Phone Rear Camera

Camera Module MIPI Interface

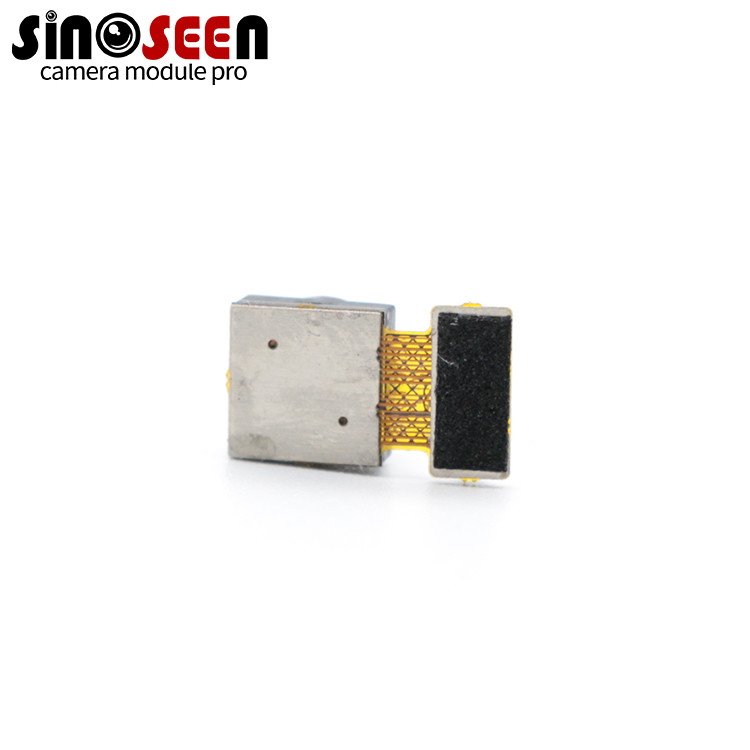

This is a 8MP MIPI camera module with OV8858 sensor from Omnivision,The OV8858 RAW RGB image sensor is a low voltage, high per formance1/4-inch 8megapixel CMOS image sensor that provides the functionality of a single 8megapixel (3264x2448) camera using improved OmniBSI -3™technology. It provides full-frame, sub-sampled, windowed 10-bit MIPI images in various formats via the control of the Serial Camera Control Bus (SCCB) interface.

The OV8858 has an image array capable of operating at up to 30 frames per second (fps) in 10-bit 8 megapixel resolution with complete user control over image quality, formatting and output data transfer. Some image processing functions, such as defective pixel canceling , lens correction (LENC), etc, are programmable through the SCCB interface.

In addition, Omnivision image sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable, color image.

Specification
