Fixed Focus USB Iris Camera Module 2592*1944 Pixels Omnivision OV5640 Sensor

Fixed Focus USB Iris Camera Module 2592*1944 Pixels Omnivision OV5640 Sensor

Fixed Focus 5MP Facial Recognition USB Camera Module With Omnivision OV5640 Sensor

USB Camera Module
This is our newly developed 5MP USB camera module with Omnivision CMOS sensor OV5640. OV5640 is a 5MP chip that is widely used and recognized by customers. It can output a resolution of up to 2592x1944. The picture quality is excellent and stable.

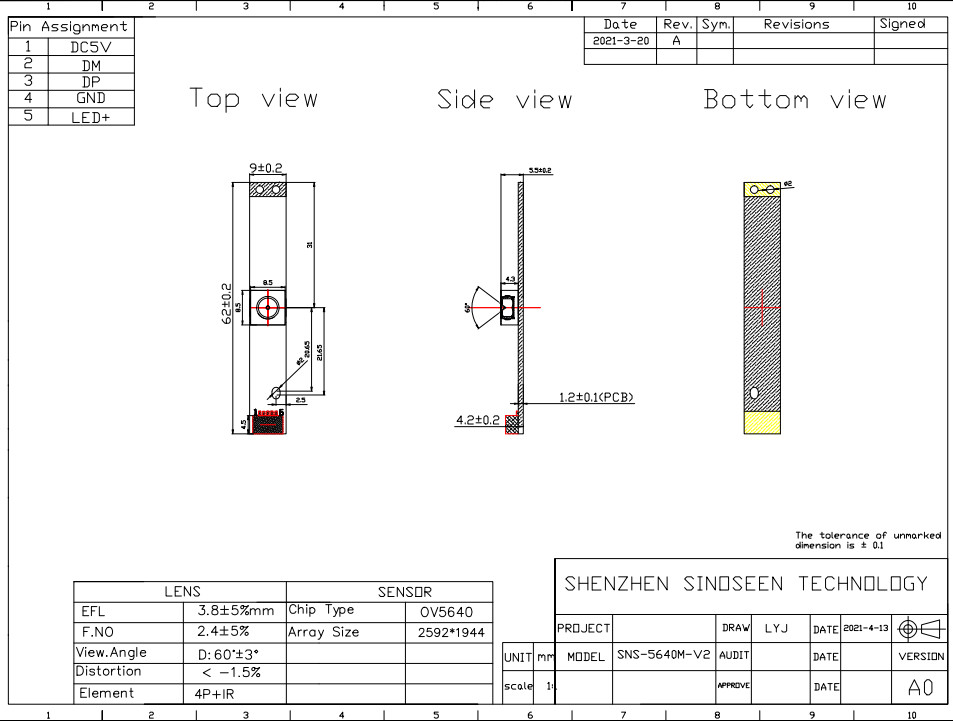

In this face recognition USB camera module, we made the PCB board into a size of 62mmx9mm according to the customer's needs, and chose an ordinary 60-degree fixed-focus lens according to the customer's shooting distance and the area of the picture that needs to be shot.
If you have similar needs, we can also customize the size of the PCB board according to your actual needs, choose the appropriate lens angle, and print your logo.

Specification

Model No	SNS-PC293-V1.0
Pixel Size	1.4μm x 1.4μm
Effective Pixels	HD 2592(H)X1944(V)
Image Sensor	1/4"
AEC/AWB/AGC	Supported
Lens View	FOV60°(Optional),F/N(Optional)
Interface	USB BUS POWER 5P-1.0mm
Operating Voltage	DC5V
Working Current	120mA~220mA
Dimension	62X9mm
Cable Length	1m/1.5m
