MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters

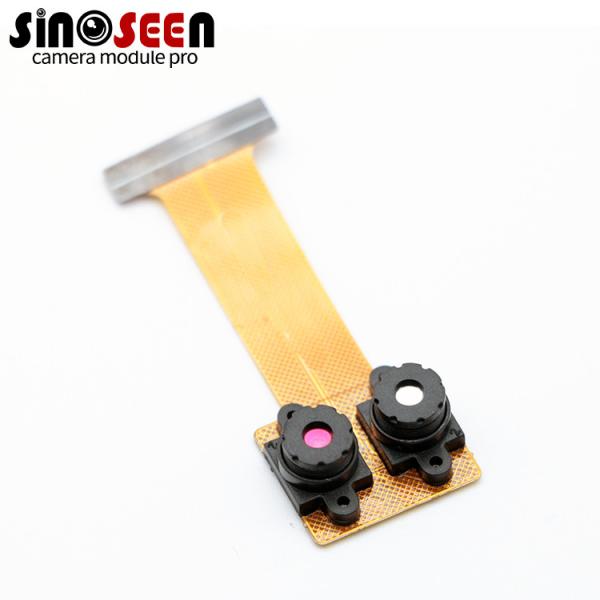

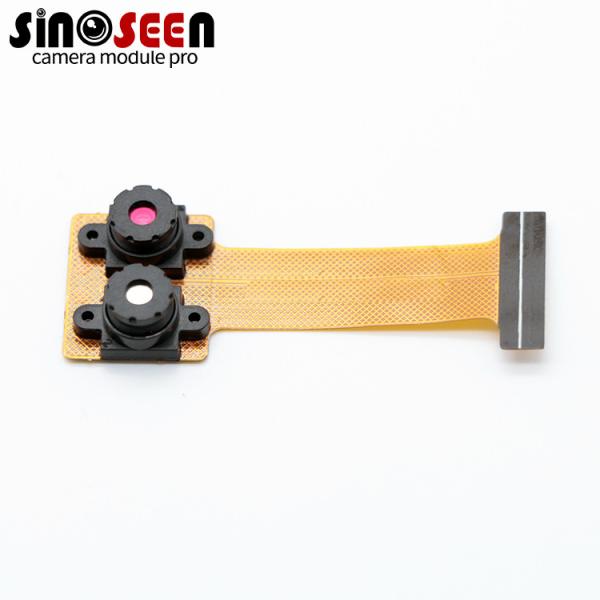

Dual Lens MIPI CSI2 Interface Flexible FPC 1MP 720P Camera Module With Omnivision OV9732 CMOS Sensor

This is our newly developed MIPI binocular camera module. It uses the OV9732 chip. The two lenses use different filters, 650nm and 850nm. You can choose different according to your actual needs. The filter, such as 940nm.

OV9732 is a 1/4 inch chip, 720P HD, and outputs color images. It has the following features:

support for image sizes:full size(1280x720),VGA(640x480),2x2 RGB binning (640x360)

support for output formats:10-bit RAW output with 1-lane MIPI and DVP

on-chip phase loch loop(PLL)

programmable controls for frame rate,mirror and flip,gain/expourse,and windowing

support for horizontal and vertical sub-sampling

low power module(LMP) function

capable of maintaining register values at software power down

standard SCCB interface

GPIO tri-state configurability and programmable polarity

FSIN

image quality control:defect pixel correction(DPC) and automatic black level calibration(ABLC)

Main applications: IP camera,life style camera,surveillance,motion camera

Specification
