Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

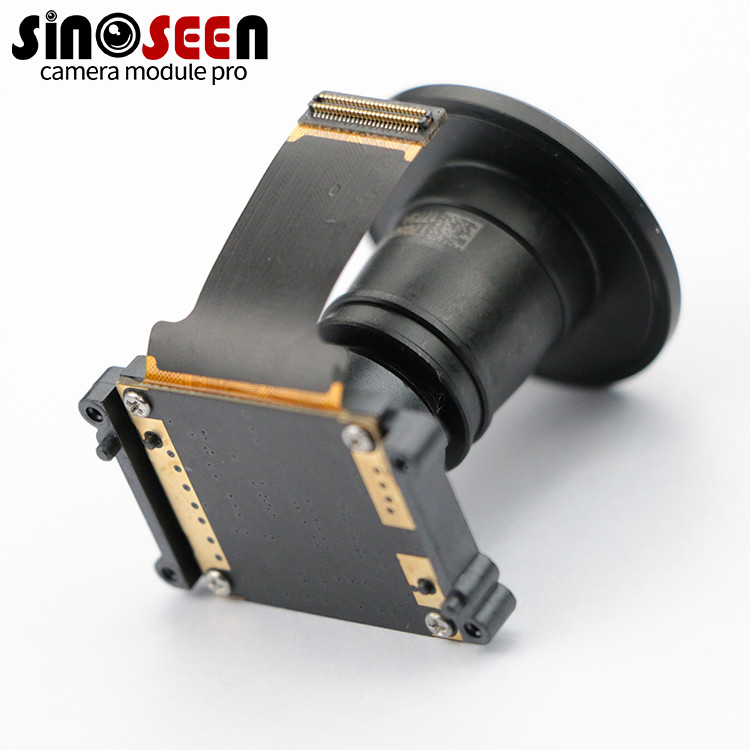

Fisheye Lens Fixed Focus HDR High Dynamic Range MIPI CSI4 Camera Module With Omnivision Sensor OS02C10

MIPI Camera Module

This is a fisheye lens fixed focus HDR MIPI camera module with sensor OS02C10 from Omnivision,OS02C10 is a very good sensor widely used in security camera,action camera and high resolution consumer camera.

Specification

Model No	SNS-2MP-OS02C10-M1
Sensor	1/2.8" Omnivision OS02C10
Pixel	2MP
Most effective pixels	1920x1080
Pixel Size	2.9 µm x 2.9 µm
Min illumination	530nm
Compression format	MJPG / YUY2
Resolution & Frame rate	40X3 fps @ 1080p in 10-bit 30X3 fps @ 1080p in 12-bit
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	32,000 e- /Lux-sec
Interface type	MIPI
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens FOV	160°
Audio frequency	Support
Power consumption	DC 5V, 100mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	-30°C to 85°C
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
