OV9782 Sensor 60FPS Zoom Camera Module Color Image Global Shutter

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-1MP-OV9782-H1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

OV9782 Sensor 60FPS Zoom Camera Module Color Image Global Shutter

OV9782 Sensor 60FPS Zoom Camera Module Color Image Global Shutter

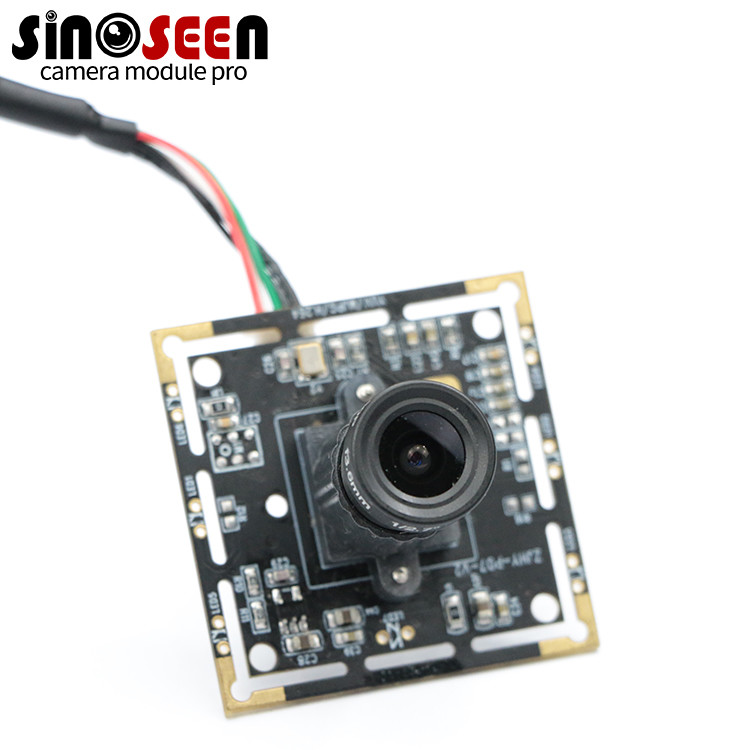

60FPS Global Shutter Color Image Zoom USB Camera Module With OV9782 Sensor

usb camera module Global Shutter description

This is one of our most popular global shutter camera modules that can output color images. It has an Omnivision OV9782 CMOS sensor with a resolution of 1MP (1280x800), and the image quality is very high and stable.
OmniVision's OV9782 is a high-speed global shutter image sensor that can bring 1 megapixel resolution for various consumer and industrial computer vision applications, including augmented reality (AR), virtual reality (VR) and UAV to avoid collisions. Bar code scanning and factory automation.
Camera modules can be widely used in many high-tech high-end applications, such as robotics, robotics, machine vision, industrial automation, vision systems, imaging, automobiles, object tracking, factory automation, medical equipment, artificial intelligence, augmented reality (AR), Virtual reality (VR), computer vision, drones, sports, agriculture, barcode scanning and 3d, etc.

Specification

Model No	SNS-1MP-OV9782-H1
Sensor	1/4’’ Omnivision OV9782 CMOS sensor
Pixel	1 Mega Pixel
Most effective pixels	1280(H) x 720(V)
Pixel Size	3.0µm x 3.0µm
Image area	3896µm x 2453µm
Chroma	COLOR Image
Compression format	MJPG/YUY2
Resolution & Frame rate	See above
Shutter Type	Global shutter
Focus type	Fixed focus
S/N ratio	38dB
Dynamic range	68dB
Protocol	Plug-&-Play (UVC compliant)
Interface type	USB2.0 high speed
Lens	Lens Size: 1/4 inch
	FOV: 90°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control	Not supported
Auto White Balance	Supported
Auto Gain Control	Not supported
Dimension	32mm*32mm
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

OV9782 Sensor 60FPS Zoom Camera Module Color Image Global Shutter

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Current avaliable global shutter USB camera module

Omnivision OV7251 0.3MP Monochrome(black and white)

Omnivision OV9281 1MP Monochrome(black and white)

ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color

Omnivision OG02B1B 2MP Monochrome(black and white)

Omnivision OG02B10 2MP RGB color
