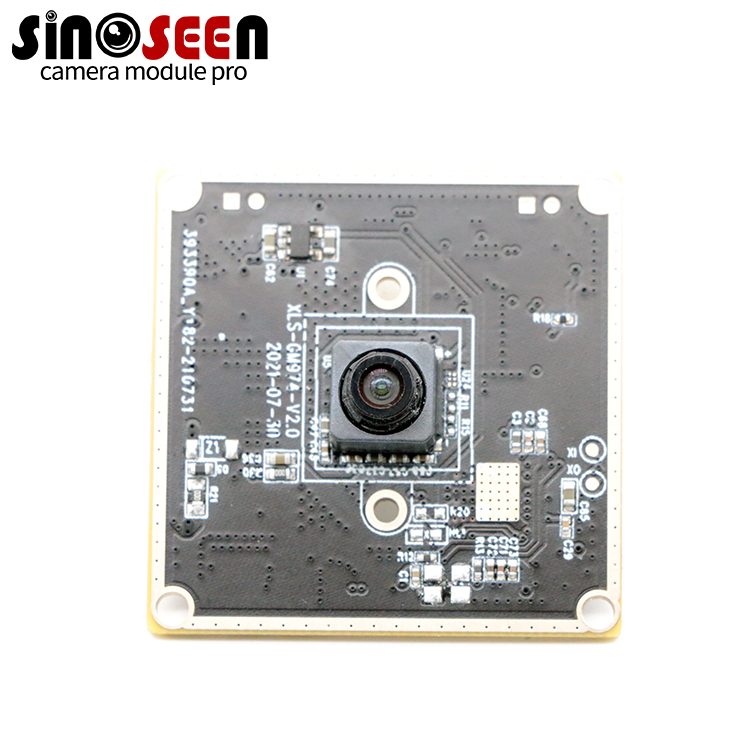

    16MP Fixed Focus HDR USB Camera Module With SONY CMOS Sensor IMX298

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS-2MP-IMX298
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    16MP Fixed Focus HDR USB Camera Module With SONY CMOS Sensor IMX298

    IMX298 WDR 16MP USB CAMERA MODULE

    16mp HDR Usb Camera Module Fixed Focus With SONY CMOS Sensor IMX298

    USB Camera Module

    This is our newly developed camera module with Sony CMOS sensor IMX298,IMX298 is a CMOS active pixel image sensor,It has an effective pixel array of 4672 (H) × 3520 (V).By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.5 V, digital 1.1 V and 1.8 V for input/output interface and achieves low power consumption;Using Exmor RSTM technology to achieve high sensitivity, low noise and high-speed image capture.Built-in back-illuminated imaging pixels, low-noise analog amplifiers, column-parallel A/D converters that can achieve high-speed capture, digital amplifiers, imaging size and frame rate timing control circuits.One-time programmable memory is embedded in the chip to store user data.Using IMX298 sensor high dynamic range and low power consumption function has higher brightness data storage than other formats of pictures.MX298 can combine normal mode or HDR mode to capture and output full-size, cropped or zoomed images.It is widely used in mobile phone cameras, notebook computers and desktop computer cameras and other fields.

    Specification
    Sensor TypeSony IMX298
    Most effective pixels4672 (H) × 3520 (V)
    Pixel Size1.12 um (H) × 1.12 um (V)
    Image Sensor1/2.8"
    Operating temperature-20 to~70˚C
    storage temperature-30 to ~80˚C
    Output voltage (digital)-0.3 to +2.52V
    DimensionsCustomizable
    Lens view

    FOV70°(optional),F/N(optional)

    TV Distortion<1%
    Operating voltageAVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V


    Shenzhen Sinoseen Technology Co.,Ltd

    China top 10 camera module manufacturer

    We customize all kinds of USB/MIPI/DVP camera module as per your request


    Current available USB solution


    0.3MP

    Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

    Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

    Global shutter:OV7251 (1/7.5”,B/W)

    High frame rate:200FPS SC031GS(1/6”,B/W)

    Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)


    1MP

    Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

    Small size for endoscope:OV9734 GC1009 HM1091

    Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

    Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)


    2MP

    Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

    1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

    1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

    1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

    1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

    1080P-WDR (30FPS): AR0230 AR0331(300W)

    1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

    1080P big size: IMX385

    1080P global shutter: OG02B10(color) OG02B1B(B/W)


    5MP

    500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

    FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)


    8MP

    800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

    8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)


    13MP-16MP

    IMX214(13M) IMX258(13M) IMMX298(16M)


    USB3.0

    IMX335 OV5648 IMX179 IMX307 PS5268


    H264

    GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
