4K 8MP HDR USB Camera Module With SONY IMX415 Sensor

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-8MP-IMX415-bc00
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

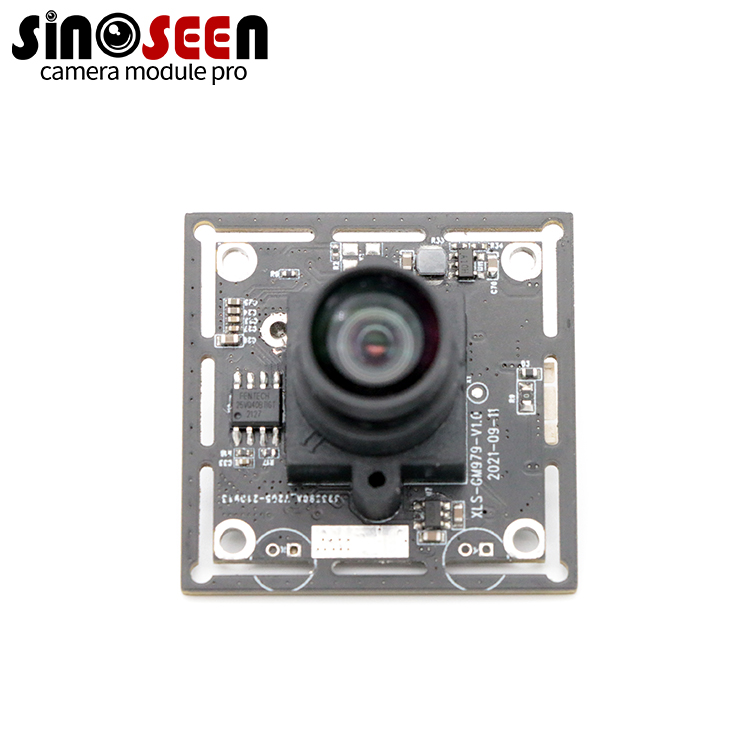

4K 8MP HDR USB Camera Module With SONY IMX415 Sensor

8MP HDR usb camera module 4K with SONY IMX415 sensor

4K 8MP HDR usb camera module with SONY IMX415 sensor

HDR USB Camera Module SONY IMX415

This is our newly developed USB camera module with Sony IMX415 sensor.The size of the sensor is 1/2.8, the size is small, it is easier to obtain a larger depth of field. The maximum resolution is 3840*2160, and it can output 30FPS in full resolution. It has the characteristics of high dynamics and high definition, which can perfectly restore the true colors of the picture.The module size is 38MM*38MM (compatible with 32MM*32MM), we can adjust the size and shape according to your requirements;In addition, we have various FOVs from 40° to 200°. This IMX415USB camera module is often widely used in high-definition photography, video surveillance, video conferencing all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition, etc.

Specification

Model NoSNS-8MP-IMX415-bc00
Sensor1/2.8’’ SONY IMX415 CMOS
Pixel8 Mega Pixel
Most effective pixels3840(H) x 2160(V)
Pixel Size1.45µm x 1.45µm
Image area3864um (H) x 2196um (V)
Compression formatMJPEG / YUV2 (YUYV)
Resolution & Frame rateSee above
Shutter TypeElectronic rolling shutter
Focus typeFixed focus
ChromaColor, RGB
Clock Frequency6 to 72 MHz
MicrophonesBuilt-in
Interface typeUSB2.0
Adjustable parameterBrightness/Contrast/Color saturation/Hue/Definition/Gamma/White
balance/Exposure
LensFocal length: 3.6mm
Lens construction: 5E+IR
D FOV: 100 degree
Thread Size: M12*P0.5
Audio frequencyOptional
Power supplyUSB BUS POWER
Operating VoltageDC 5V
Operating Current260mA
Main chipDSP/SENSOR/FLASH
Auto Exposure Control (AEC)Support
Auto White Balance (AEB)Support
Auto Gain Control (AGC)Support
DimensionCustomizable
Storage temperature-20°C to 70°C
Operating temperature0°C to 60°C
USB cable lengthDefault
Support OSWinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
