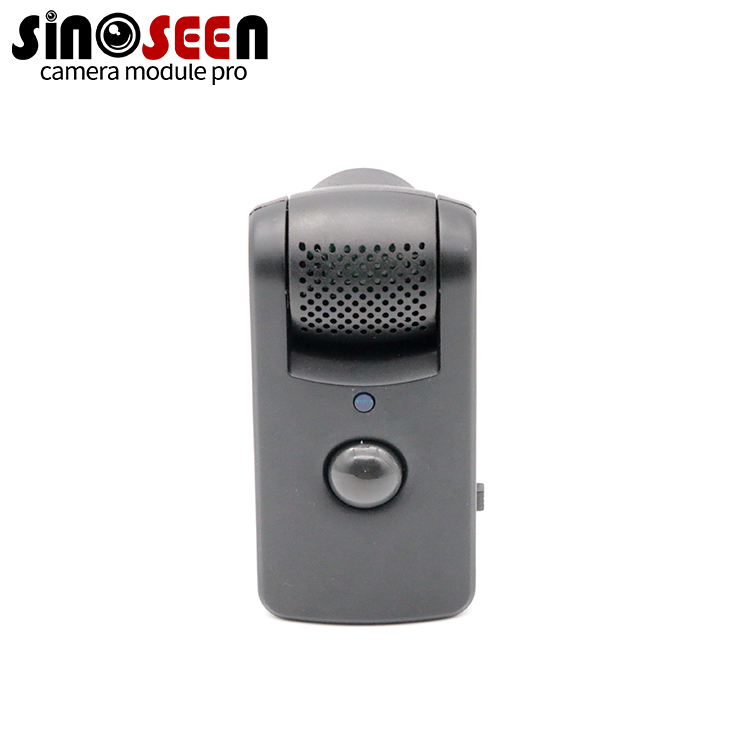

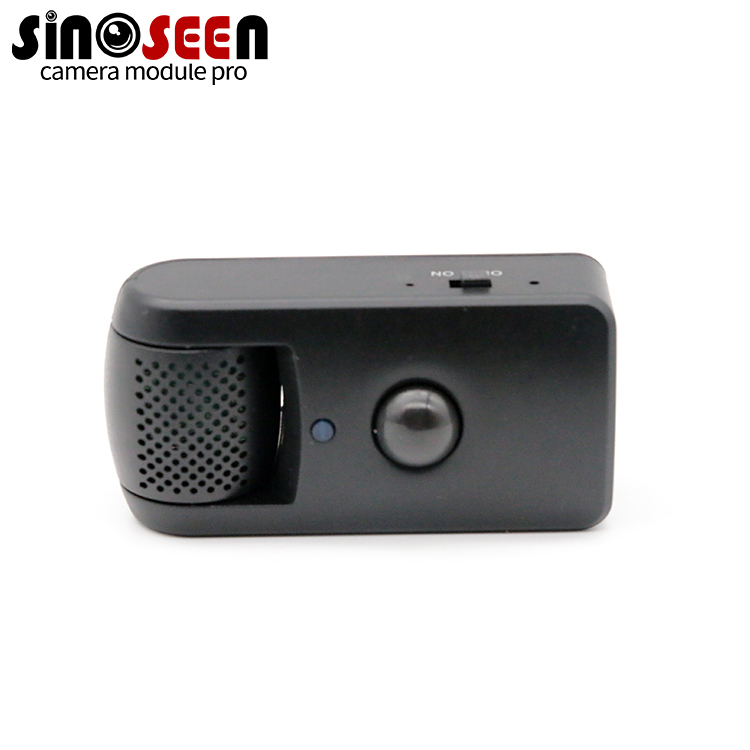

Remotely Controlled 1MP 720P WiFi Camera Module With OV9732 Sensor

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-1MP-OV9732-TDB
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Remotely Controlled 1MP 720P WiFi Camera Module With OV9732 Sensor

1MP 720p Camera Wireless WiFi Can Be Remotely Controlled With OV9732 Sensor.

2021 1MP 720p Camera Wireless WiFi Can Be Remotely Controlled With OV9732 Sensor.

1MP 720P WiFi Camera Module

Features

Size: 1/4

The highest resolution is 1280*720

With wireless WiFi, remote control operation

Support operating system: WinXP/Vista/Win7/Win8/Win10 Linux with UVC (linux-2.6.26 and above) MAC-OS X 10.4.8 or later Android 4.0 or later with UVC

Able to run at 30 frames per second (fps) at 720p resolution and 45fps at VGA resolution.

It is widely used in network cameras, lifestyle cameras, surveillance and sports cameras.

Specification

Model No	SNS-1MP-OV9732-TDB
Sensor	1/4" Omnivision OV9732
Pixel	1 Mega Pixel
Most effective pixels	1280(H) x 720(V)
Pixel Size	3µm x 3µm
Protocol & Connection	Plug-&-Play (UVC compliant)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Output Format	Raw Data 10bits
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	41dB
Interface type	USB2.0
Lens FOV	72°
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Audio frequency	Optional
Microphone	2
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
