2MP FHD 1080P HDR USB 3.0 Camera Module With PS5268 Sensor

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-2MP-PS5268-A78
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

2MP FHD 1080P HDR USB 3.0 Camera Module With PS5268 Sensor

usb3.0 camera module Full-HD 1080P HDR with PS5268 sensor

2MP Full-HD 1080P HDR usb3.0 camera module with PS5268 sensor

HDR USB 3.0 Camera Module

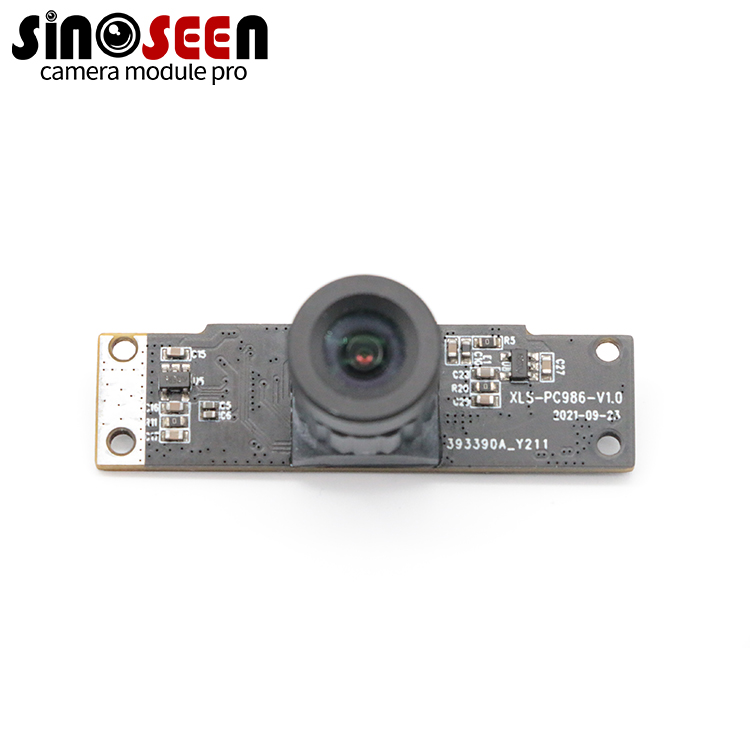

This is our newly developed USB camera module with PS5268 sensor.The sensor has a size of 1/2.7 and a maximum resolution of 1928*1088. It has the characteristics of high dynamics and full HD, which is very rare.This USB camera module can be widely used in face recognition, surveillance high-definition CCTV cameras, surveillance network cameras, car video recorders, video access control phones and other fields.If you need to customize your own module, we can customize all parameters such as size, lens angle, etc. according to your requirements.

Specification

Model NoSNS-2MP-PS5268-A78
SENSORPS5268
Active array size1928(H) x 1088(V)
Pixel size3.0um (H) x 3.0um (V)
Shutter typeElectronic rolling shutter (ERS)
Optical format1/2.7-inch
Lens chief ray angle17 degree
ADC10-bit
Sensitivity5800 mV/Lux-sec
SNRmax41 dB
Dynamic range85 dB
Scan modeProgressive scan
Input clockMax 50MHz
Pixel clockMax 148.5MHz
Max. frame rate1080p: 1920x1080 Linear@ 60fps
1080p: 1920x1080 HDR+LTM @30fps
Supply voltageAnalog: 3.3 V
Digital: 1.2 V
I/O: 1.8V / 3.3V
Power consumption75mW@1080p30 (MIPI)
54.5mW@1080p30 (DVP w/o I/O)
124mW@HDR-LTM1080p30 (MIPI)
107mW@HDR-LTM 1080p30 (DVP w/o
I/O)
Operating temperature-30°C ~ 85°C

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Camera Module Application Areas

Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen Sinoseen Technology Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more 2MP Camera Module products from this supplier

Find Similar Products By Category:

Electronic Components & Supplies

Hot Searches:

Shenzhen Sinoseen Technology Co., Ltd

2MP FHD 1080P HDR USB 3.0 Camera Module With PS5268 Sensor

2MP FHD 1080P HDR USB 3.0 Camera Module With PS5268 Sensor

2MP FHD 1080P HDR USB 3.0 Camera Module With PS5268 Sensor

usb3.0 camera module Full-HD 1080P HDR with PS5268 sensor

2MP Full-HD 1080P HDR usb3.0 camera module with PS5268 sensor

HDR USB 3.0 Camera Module

2MP USB 3.0 Camera Module

PS5268 Sensor 2MP Camera Module

2MP FHD 1080P HDR USB 3.0 Camera Module With PS5268 Sensor

Model No	SNS-2MP-PS5268-A78
SENSOR	PS5268
Active array size	1928(H) x 1088(V)
Pixel size	3.0um (H) x 3.0um (V)
Shutter type	Electronic rolling shutter (ERS)
Optical format	1/2.7-inch
Lens chief ray angle	17 degree
ADC	10-bit
Sensitivity	5800 mV/Lux-sec
SNRmax	41 dB
Dynamic range	85 dB
Scan mode	Progressive scan
Input clock	Max 50MHz
Pixel clock	Max 148.5MHz
Max. frame rate	1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps
Supply voltage	Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V
Power consumption	75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O)
Operating temperature	-30°C ~ 85°C
