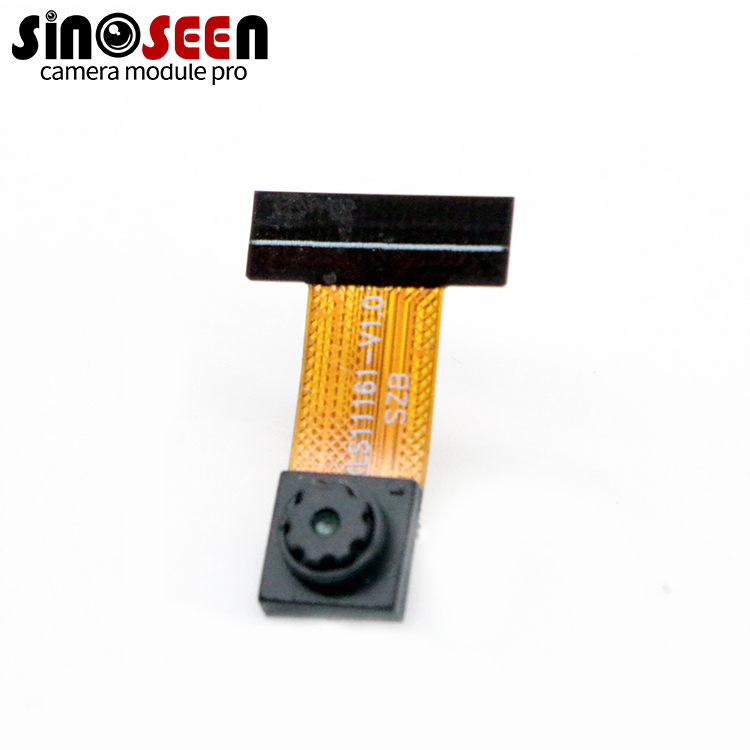

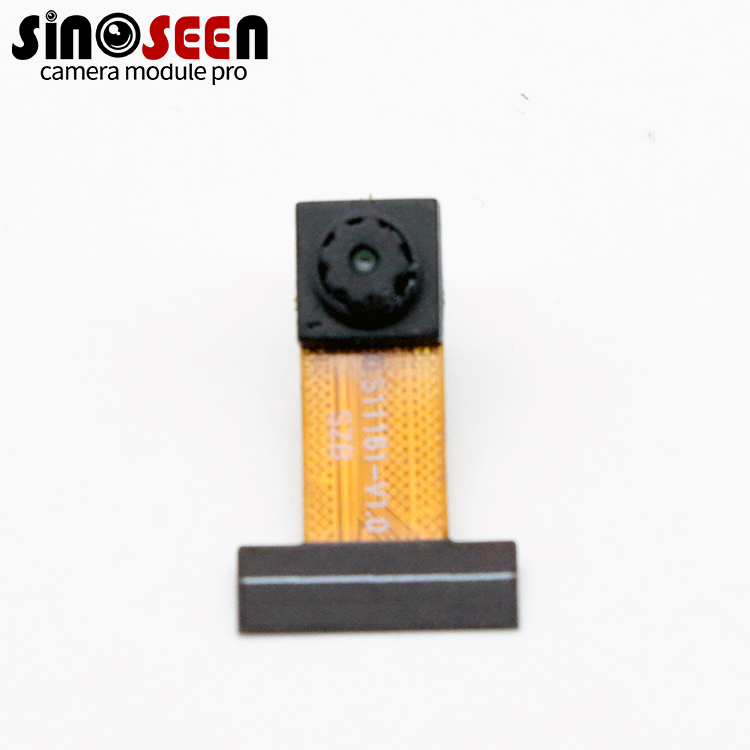

GC0308 Sensor Mini 0.3MP MIPI Camera Module 640x480

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-0.3MP-GC0308-GHR
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

GC0308 Sensor Mini 0.3MP MIPI Camera Module 640x480

**Low Power Consumption 640*480 With GC0308 0.3MP Mipi Camera Module**

**Mini 0.3MP Low Power Consumption 640*480 With GC0308 Mipi Camera Module**

Features:

Size: 1/6.5

Maximum resolution: 648*488

Features:

1. Low power consumption

2. Run at 30FPS per second at 640*480 resolution, and run at 60FPS per second at 320*240 resolution

Application ‹Cellular Phone Cameras ‹Notebook and desktop PC cameras ‹PDAs ‹Toys ‹Digital still cameras and camcorders ‹Video telephony and conferencing equipments ‹Security systems ‹Industrial and environmental systems ‹Bar code reader

Specification:0.3MP MIPI Camera Module

Model No	SNS-0.3MP-GC0308-GHR
Sensor	1/ 6.5’’ GalaxyCore GC0308
Pixel	0.3 Mega Pixel
Most effective pixels	640 (H) x 480 (V)
Pixel Size	3.4µm x 3.4µm
Compression format	YUY2 ONLY
Resolution & Frame rate	640x480@30fps; 352x288@30fps; 320x240@30fps; 176x144@30fps; 160x120@30fps;
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	49dB
Dynamic range	55dB
Sensitivity	3300mV/Lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma
Audio frequency	Optional
Lens FOV	Default 60° (Optional)
Lens Thread Size	M12*P0.5 (Optional)
Power supply	USB BUS POWER
Power consumption	DC 5V, 70mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	NOT Support
Auto White Balance (AEB)	NOT Support
Auto Gain Control (AGC)	NOT Support
Dimension	30mm x 25mm
Storage temperature	-30°C to 80°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
