Fixed Focus 8MP 4K USB 2.0 Camera Module With Sony IMX415 COMS Sensor

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-8MP-IMX415-jkl
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Fixed Focus 8MP 4K USB 2.0 Camera Module With Sony IMX415 COMS Sensor

4K Usb camera module HDR 8mp Fixed Focus with Sony IMX415 COMS Sensor

New Style 8mp Fixed Focus 4K Usb Camera Module HDR With Sony IMX415 COMS Sensor

Size: 1/2.8" can provide high-quality images

Maximum resolution: 3840*2160

Features:

1. MJPEG/YUY2 dual output format is optional

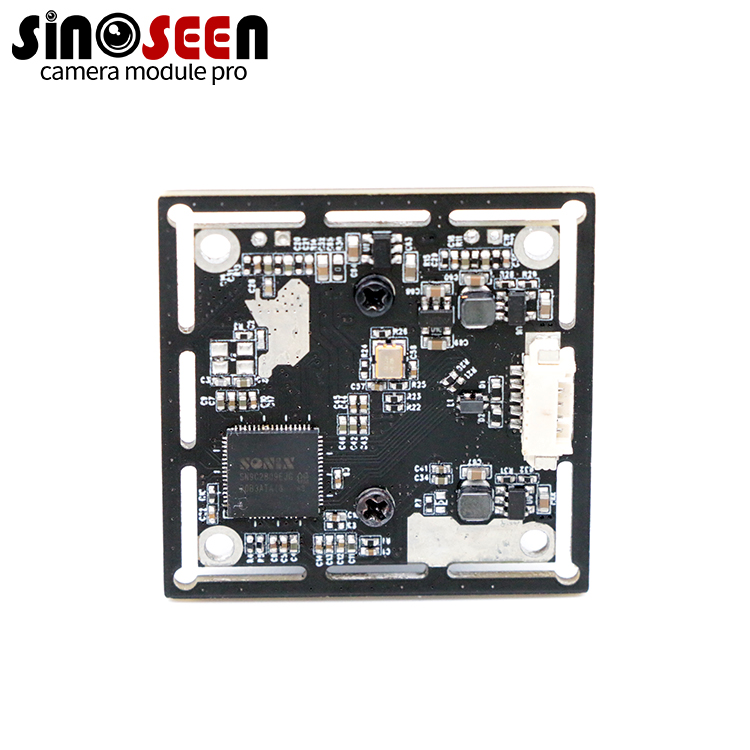

2. Mini board size 38x38mm for embedded applications

3. Low power consumption-very suitable for portable devices

4. 4K high-definition pixels, can output at 30FPS frame rate at full resolution, smooth pixels

Application: high-definition photography, video surveillance, video conference all-in-one, video teaching, QR code recognition, Internet of Things, aerial drones and other fields

Specification:4K USB Camera Module Sony IMX415

Model No	SNS-8MP-IMX415-jkl
Sensor	1/2.8’’ SONY IMX415 CMOS
Pixel	8 Mega Pixel
Most effective pixels	3840(H) x 2160(V)
Pixel Size	1.45µm x 1.45µm
Image area	3864um (H) x 2196um (V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
Chroma	Color, RGB
Clock Frequency	6 to 72 MHz
Microphones	Built-in
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens construction: 5E+IR
	D FOV: 100 degree
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Operating Voltage	DC 5V
Operating Current	260mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	38MMx38MM Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
