    Color CMOSQSXGA 5MP OV5648 Sensor MIPI Autofocus Camera Module

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS-DZ1018-V1.0
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    Color CMOSQSXGA 5MP OV5648 Sensor MIPI Autofocus Camera Module

    Color CMOSQSXGA 5MP OV5648 Image Sensor MIPI Autofocus Camera Module


    5MP camera module

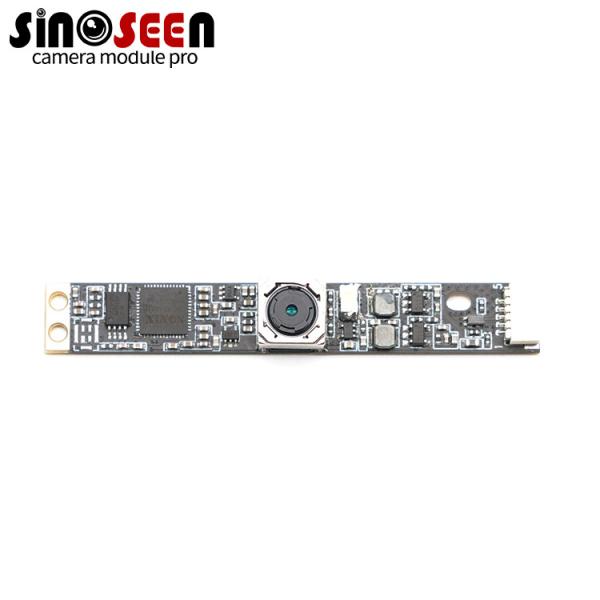

    This is a 5MP MIPI mobile phone autofocus camera module, the image sensor is Omnivision's OV5648, and the OV5648 is a 1/4-inch color CMOS QSXGA image sensor. It produces very nice and stable images.
    This product supports UVC protocol, auto focus, driver-free, plug and play, and supports Raspberry Pi and Jetson Nano. The small size makes it easy to install into a variety of devices.
    Currently it comes with an 80 degree autofocus lens, you can replace it with another nt DFOV or any other fixed different DFOV
    Used in mobile phones, toys, computer multimedia, digital cameras, all-in-one machines.
    Regarding size and structure, you can also design according to your actual needs.


    Specification

    Model No

    SNS-DZ1018-V1.0

    Sensor

    1/4’’ Omnivision OV5648

    Pixel

    5 Mega Pixel

    Most effective pixels

    2592(H) x 1944(V)

    Pixel Size

    1.4µm x 1.4µm

    Image area

    3673.6µm x 2738.4µm

    Compression format

    MJPG/YUY2

    Resolution & Frame rate

    See above

    Shutter Type

    Electronic rolling shutter

    Focus type

    Auto Focus

    S/N ratio

    36dB

    Dynamic range

    72 dB @ 8x gain

    Sensitivity

    690mV / lux-sec

    Interface type

    USB2.0 high seepd

    Adjustable parameter

    Brightness/Contrast/Color saturation/Hue/Definition/
    Gamma/White balance/Exposure

    Audio frequency

    Optional

    Power supply

    USB BUS POWER

    Power consumption

    DC 5V, 200mW

    Main chip

    DSP/SENSOR/FLASH

    Auto Exposure Control (AEC)

    Support

    Auto White Balance (AEB)

    Support

    Auto Gain Control (AGC)

    Support

    Operating temperature

    30°C to 70°C

    USB cable length

    Default

    Support OS

    WinXP/Vista/Win7/Win8/Win10
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC
