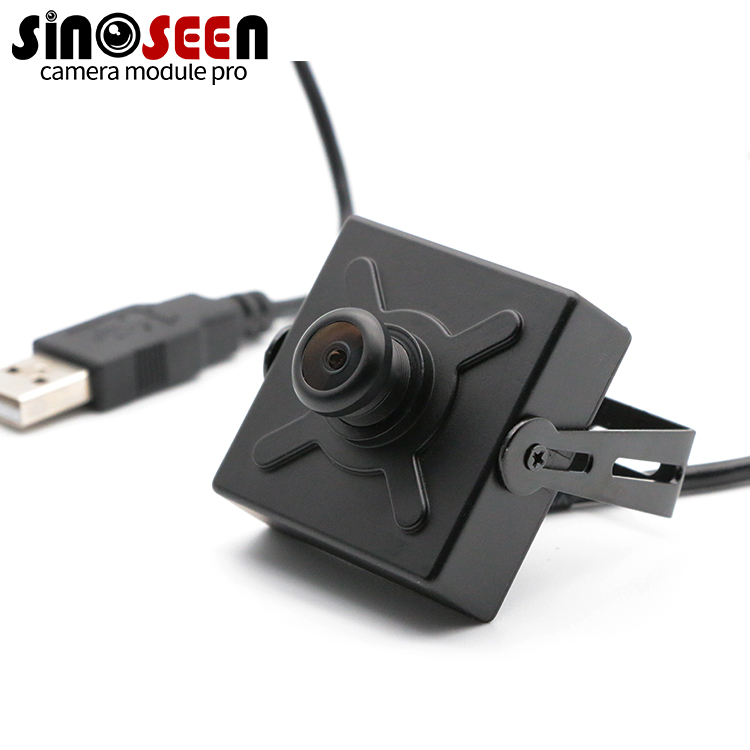

Customized OV7725 0.3MP 640x480 camera high frame rate 60fps USB2.0
camera module
60fps USB camera module
This is a palm-sized controllable, scalable, low-cost machine
vision development module SNS-OV7725-1.0. Integrate a variety of
image processing algorithms to realize face recognition, shadow
tracking, pupil tracking; this is an image sensor using the OV7725
camera chip, which is a low-voltage CMOS device. Captures 640×480
8-bit grayscale/16-bit RGB565 images at 60FPS, 320×240. The module
can be used in mobile phones and picture mobile phones, toys,
computer multimedia, digital cameras and other applications.
Specification
Module No | SNS-OV7725-1.0 |
Pixel Size | 6.0 µm x 6.0 µm |
Effective Pixels | HD 640 x 480 |
Video output | YUV2 MJPG |
Active Array Size Video Rate | 640x480 @30 fps 320x240 @ 30fps 240x180@ 30fps |
Image Sensor | ov7725 |
SNR max | 50dB |
Dynamic range | 60dB |
OTG | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White
balance/Exposure |
Lens total ray angle | 25° nonlinear |
Interface | USB BUS POWER 5P-1.25mm |
Operating Voltage | DC5V |
Operating Current | MAX120MMA |
Operating temperature | -20°C +70°C |
Storage temperature | -40°C +125°C |
Cable length | Defualt |
OS | WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your
request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP)
BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate:
OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732
NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color)
AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P)
H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925
OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W)
SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”)
SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC
OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335
AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291
IMX322 IMX323 OV2718 OV2732
