OEM Camera Module Sony IMX317 8MP HDR PCB+FPC Cmos USB Camera Module

Sony IMX317 8MP Autofocus 1/2.5 CMOS 3864x2202 Pixels PCB+FPC USB Camera Module

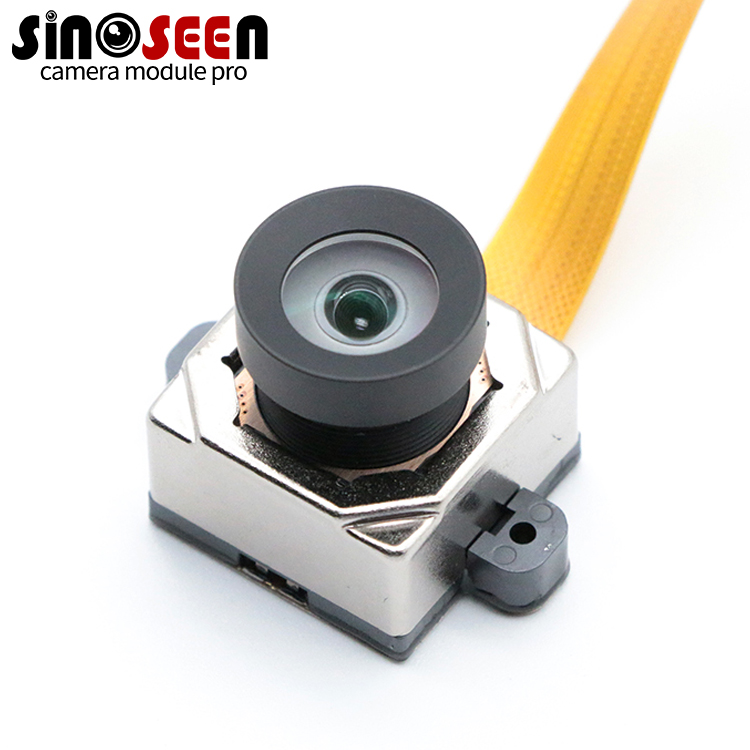

Sony IMX317 USB Camera Module

This is a USB2.0 camera module composed of PCB+FPC, equipped with Sony IMX317CMOS sensor. The effective pixels are about 8.51 million. This module realizes the electronic shutter function with high sensitivity, low dark current and variable storage time. It features a 110-degree distortion-free lens for indoor use, body tracking, motion detection, face detection, and more. At the same time, this module also has two special effects of deformation correction and digital image stabilization.

Low power consumption and high performance are one of the top levels of this camera mod. We can customize various sizes and FOV for you, if you have ideas, please contact us.

Specification:4K 8MP Camera Module

Model No	SNS-DZ1014-V1.0-PCB
Sensor	1/2.5’’ SONY IMX317 CMOS
Pixel	8 Mega Pixel
Most effective pixels	3840(H) x 2160(V)
Pixel Size	1.62µm x 1.62µm
Image area	3864um (H) x 2196um (V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	auto focus
Chroma	Color, RGB
Clock Frequency	6 to 72 MHz
Microphones	Built-in
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens construction: 5E+IR
	H FOV: 90 degree
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Operating Voltage	DC 5V
Operating Current	260mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
