Ultra Small 1MP OV9734 Low Power Camera Module For Medical Endoscopes

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-DZ996-V2.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

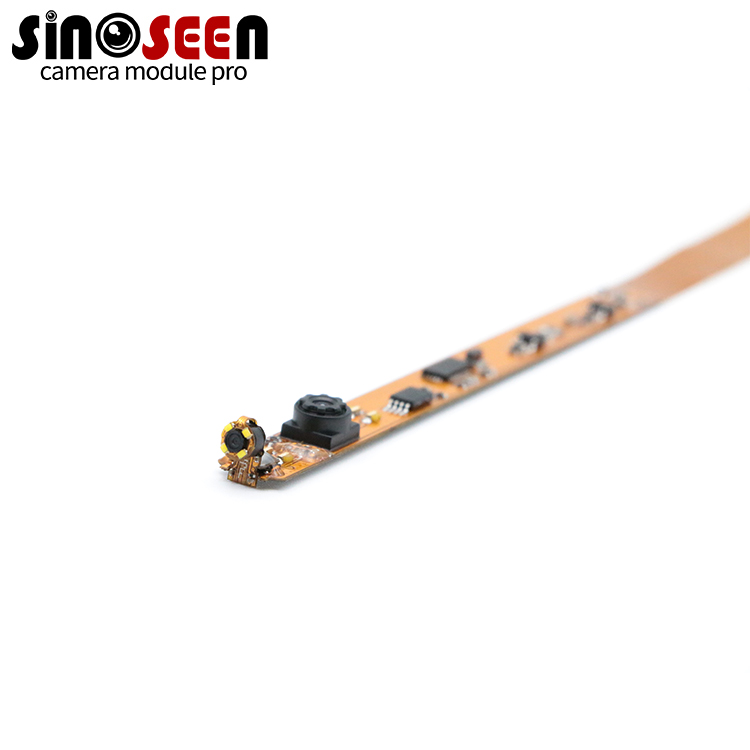

Ultra Small 1MP OV9734 Low Power Camera Module For Medical Endoscopes

Ultra Small Binocular 1MP OV9734sensor Ultra Low Power MIPI Camera Module for Medical Endoscopes

OEM Customizable Medical Endoscope Camera Module Vision Solution

1MP Camera Module

At present, this micro camera module using OV9734sensor is the smallest 1 million camera module in the industry, and it is also the only 1 million micro camera module with low power consumption. Ultra-thin, ultra-small, ultra-low power consumption. Megapixel camera module. The format it outputs: Mipi . Available camera ports: USB 2.0 A (MD-B21105L); Micro USB B (MM-B21105L); USB Type C (MT-B21105L)

This camera is an endoscopic camera and can be used in medical and industrial endoscopes. We use endoscopes to see lesions that X-rays can't see, so it's very useful to doctors. For example, endoscopists can look at ulcers or tumors in the stomach and use that to determine the best treatment plan.

Specification

Module No	SNS-DZ996-V2.0
Pixel Size	1.4μm x 1.4μm
Effective Pixels	1MP 1280(H) x 720(V)
Video output	Raw Bayer10bit/8bit
Active Array Size Video Rate	30FPS
Image Sensor	1/9"
Sensor Type	Omnivision OV9734
Lens view	(optional)
TV Distortion	<1%
AEC	Support
AEB	Support
AGC	Support
Operating voltage	AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature	-20～70℃
Storage temperature	0～50℃
Dimensions	Customizable

Ultra Small 1MP OV9734 Low Power Camera Module For Medical Endoscopes
