PS5268 HD 1080p USB Camera Module HDR Sensor With Low Power Rolling Shutter

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-GM985-V1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

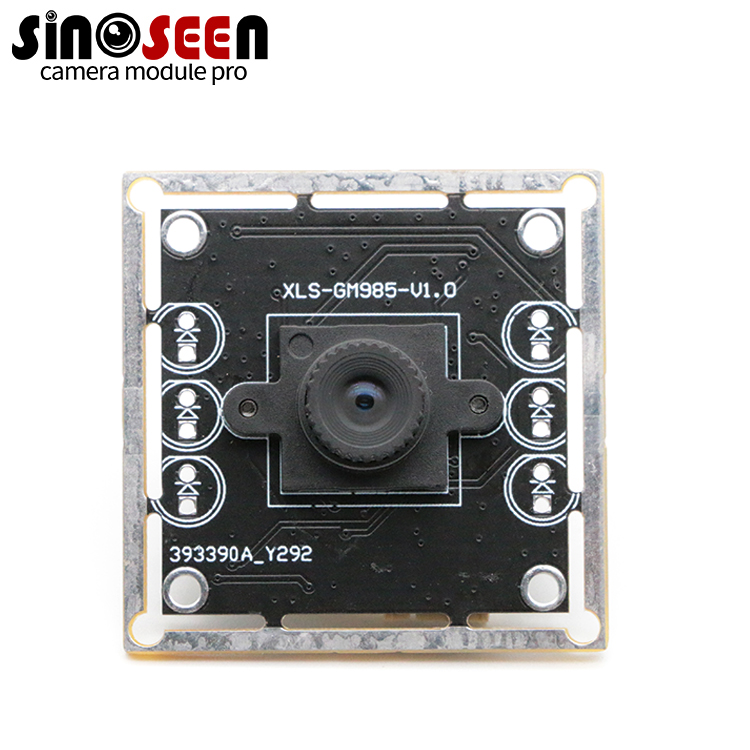

PS5268 HD 1080p USB Camera Module HDR Sensor With Low Power Rolling Shutter

PS5268 Full HD 1080p HDR Sensor Low Power Rolling Shutter USB Camera Module

HDR USB Camera Module

This is our newly developed mainstream specification 1080p wide dynamic range (HDR) camera module. The camera module adopts PS5268 2mp sensor, which has the characteristics of high dynamic and high definition, and can output very good picture quality. Low power design. The camera module can be widely used in IoT cameras, high-definition surveillance cameras (HD-CCTV), IP surveillance cameras, driving recorders, smart doorbells, smart rearview mirrors, etc.

Specification

Model No	SNS-GM985-V1
SENSOR	PS5268
Active array size	1928(H) x 1088(V)
Pixel size	3.0um (H) x 3.0um (V)
Shutter type	Electronic rolling shutter (ERS)
Optical format	1/2.7-inch
Lens chief ray angle	17 degree
ADC	10-bit
Sensitivity	5800 mV/Lux-sec
SNRmax	41 dB
Dynamic range	85 dB
Scan mode	Progressive scan
Input clock	Max 50MHz
Pixel clock	Max 148.5MHz
Max. frame rate	1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps
Supply voltage	Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V
Power consumption	75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O)
Operating temperature	-30°C ~ 85°C

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request
