1080P WDR GC2053 2MP Camera Module 30fps With Electronic Rolling Shutter

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-G2053-V1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

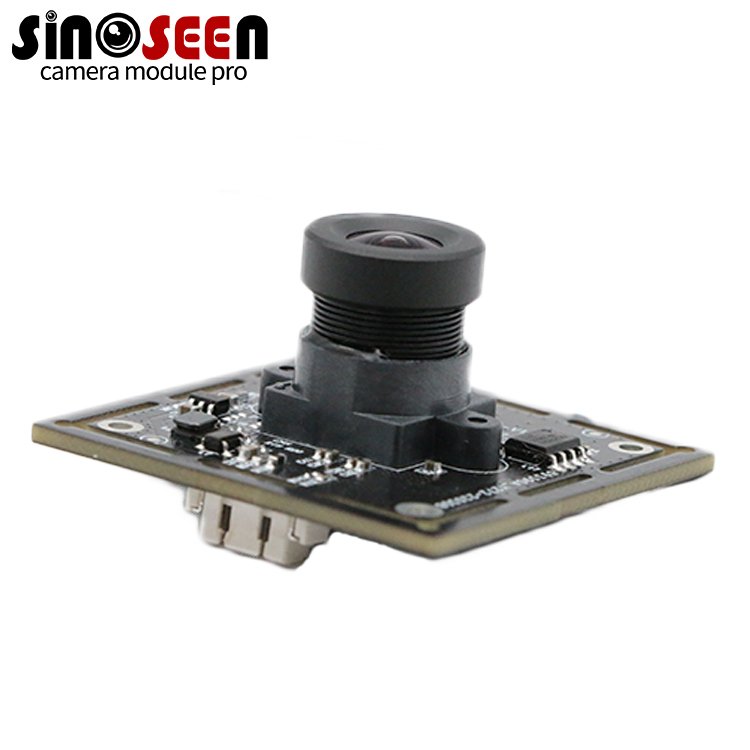

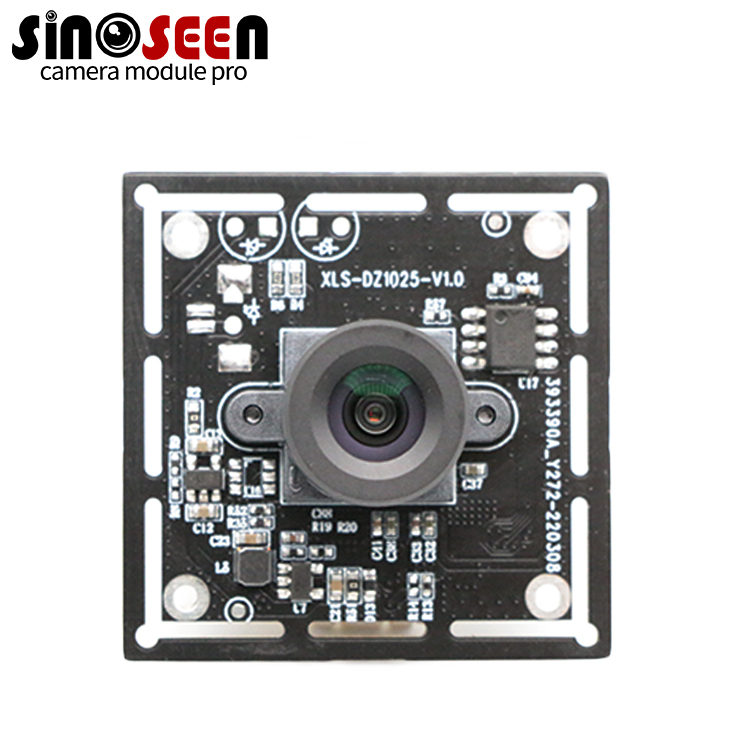

1080P WDR GC2053 2MP Camera Module 30fps With Electronic Rolling Shutter

Low Power 1080P WDR GC2053 30fps Electronic Rolling Shutter USB Camera Module

GC2053 2MP Camera Module

This is a high quality gc2053 camera module. The module has
1920x1080 pixels and fully integrates high performance and low
power consumption, making this module an optimized design for
reduced implementation and longer battery life in action cameras,
car dvr and various mobile applications. In fact, the application
of cameras in the security and automotive fields is very different
from the application of mobile phones. Many surveillance cameras
are installed in outdoor environments where cars are exposed to
sunlight for extended periods of time. Therefore, the operating
temperature of image sensors often exceeds 60°C, or even higher.
The module also has a wide dynamic anti-glare function. In
addition, scenes such as surveillance and car operation often
appear at night, which also places high demands on the performance
of image sensors in dark conditions. How to control or solve the
noise, black spot, sensitivity and stability issues in the above
application environment? This module can improve the image quality
of the sensor, enhance the consumer experience, and become the key
to the success of security or in-vehicle products.

Specification

Model No	SNS-G2053-V1
Sensor	1/2.9’GC2053 CMOS
Pixel	2 Mega Pixel
Most effective pixels	1920(H) x 1080(V)
Pixel Size	2.8um x2.8um
Image Area	5808µm x 3288µm
Compression format	YUV2 / MJPG
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	3700 mV/lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Power supply requirement	AVDD28: 2.7~3.3V(Typ.2.8V)
	DVDD18: 1.15~1.3V(Typ.1.2V)
	IOVDD: 1.7~3.0V(Typ.1.8V)
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Storage temperature	0~60℃
Operating temperature	-20~80℃
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
